Terminal blocks with square entry replacement of DEGSON and PHOENIX MX302 manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Terminal blocks with square entry replacement of DEGSON and PHOENIX

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

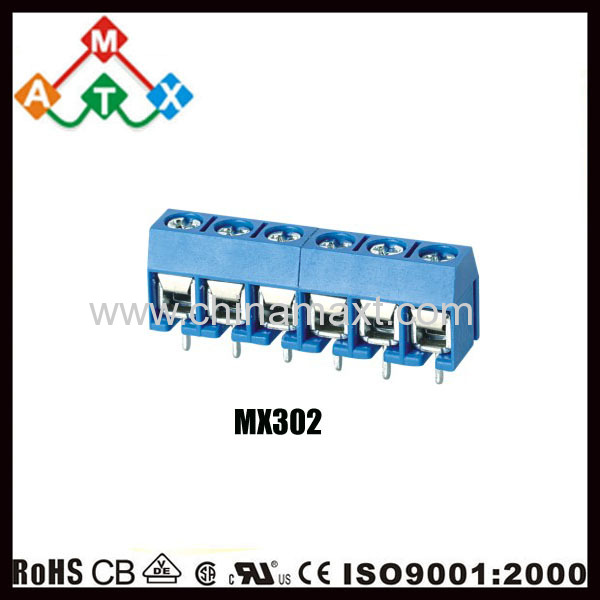

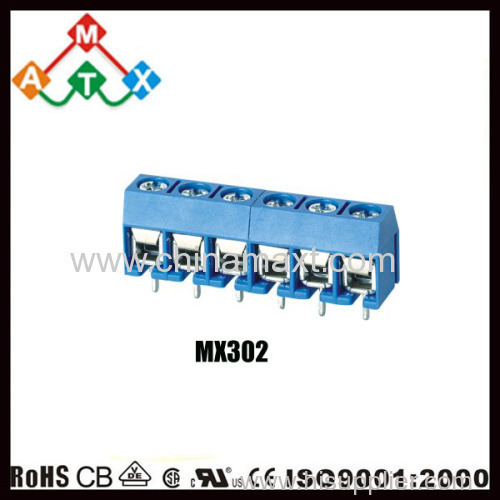

Model No.: MX302

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Rated voltage: 300V

Contact resistance: 20mΩ

Withstanding Voltage: AC2000V/1Min

Temp.Range: -30℃~+120℃

Strip length: 4.5-5mm

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Pitch: 5.0mm

Rated current: 12A

Insulation resistance: 5000MΩ/1000V

Wire range: 22-14AWG 2.5mm²

Torque: 0.4.m 3.5Lb.in

1. 300V Rated Voltage
2. 12A Rated current
3. 5000MΩ/1000V Insulation resistance
4. 22-14AWG 2.5mm² Wire range
5. +250℃ for, 5 Sec.MAX Soldering

1.Our company name:NingBo Max Electronic Technology Co.,Ltd, Our Logo is as follows

2.Euro type with spring terminal block details

Part number	MX302V-5.0
Pitch	5.0MM
Material	PA66, UL94V-0
Rated voltage/current	300V/12A
Contact	Brass,Ni plated
Wire range	24-12AWG 1mm²
Strip length	4-5mm.
Temp. Range	-40C~+105C
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

3.Picture of MX301V

4.Datasheet of MX302V

5.Packing details of MX302V

6.Similar product to MX302V

7.Our Testing Equipments

8.Our assembly Workshop

9.Our advantage:

1)Our factory located in Ningbo which is one of the largest ports in China.

2)Most of our engineers and workers is dealing with the terminal blocks more 10 years

3)Many of our items have large stock for your fast shippment

4)Reliable quality and lower price

10.Our promise to customers:

1)We can delivery the samples for your test free of charge

2)Our products are all guaranteed,you will have no worry to use.

3)We will delivery the order strictly as the order confirmed!

Notice:

Dear friend,if you are interested in our this type,please contact with Angelo Tse at any time,I will give you a quick reply and try my bes to do all the thing well.
