Euro Terminal block PCB screw connector MX301V manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Price:	0.01 USD
Payment Terms:	T/T,L/C,WU;PAPAL
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX301V

Production Capacity: 500000pins

Delivery Date: Standard delivery date is 1...

Pitch: 5.0mm

Contact: Phosphor bronze,Ni Plated

Rated Voltage: 300V

Color: Blue

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Part number: MX301V

Plastic: PBT,UL94V-0

Pin header: Brass,Tin Plated

Rated Current: 12A

Place of Origin: ZheJiang,China(mainland)

1.Pitch:5.0mm
2.Pin header: Brass Tin Plated
3.Housing:PBT UL94V-0
4.Wire range:22-14AWG 2.5mm²
5.Rated Voltage/Current:300V 12A
6.Color:Blue

Terminal block screw connector with pitch 5.0mm.we have staight and right angle type for your good choice.

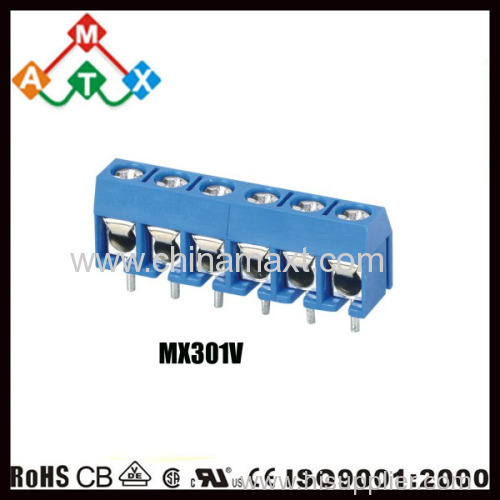

Picture of Terminal block PCB screw connector
Drawing of Terminal block PCB screw connector
Description of electronic components connector PCB terminal block

Pitch:5.0mm
Material
Screws:M2.5 steel Zinc plated
Contact:Phosphor bronze,Ni Plated or Stainless steel
Housing:PBT, UL94V-0

Electrical
Rated voltage:300V
Rated current:12A
Contact resistance:20mΩ
Insulation resistance:5000MΩ/1000V
Withstanding Voltage:AC1500V/1Min
Wire range:22-14AWG 2.5mm²

Mechanical
Temp.Range:-30℃~+120℃
MAX Soldering:+250C for 5 Sec.
Torque:0.4Nm (1.8lb.In)
Strip length:4.5-5mm.
Products application
What is a screw terminal block
With screw type terminal blocks, the inserted wire is fixed by means of a screw and thus contacted as well. The clamping bodies consist of a wrought copper alloy. The surface is galvanically plated with nickel. For types with soldering pin, the surface is galvanically underlaid with nickel and then plated with tin in order to achieve a high level of corrosion resistance and excellent solderability.All clamping bodies are undetachably fitted into the insulation housing. The terminal screws from M2 to M4 are manufactured alternatively in different materials.
Ask and Answer:

1)How to get the best price?
  Please tell us the part number or give me the link or the picture by E-mail,Skype or Phone.

2)Is the samples for free?
  Yes,we can send the free samples to you.

3)How long can get the reply?
  If you send an inquiry to us,we can reply to you in 18 hours.

4)How to order:

Package:

Delivery:
Noted:
Dear friend,thank you very much for you pay attention to this type,please feel free to contact Angelo at any time,I will give you a quick reply and try my best to do all the things well.
