PCB Euro Terminal Blocks Terminal Connector

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX129R

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Rated Voltage: 300V

Screw: M3.0 steel, zinc plated

Pin Header: Brass, tin plated

Insulation resistance: 5000MΩ/1000V

Temp.Range: -40℃~+105℃

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Pitch: 5.00mm

Rated current: 20A

Clamp: Brass, Ni plated

Withstanding Voltage: AC2000V/1Min

Wire range: 24-12AWG 4.0mm²

1. 300V Rated Voltage
2. 20A Rated current
3. AC2000V/1Min Withstanding Voltage
4. 24-12AWG 4.0mm² Wire range
5. -40℃~+105℃ Temp.Range

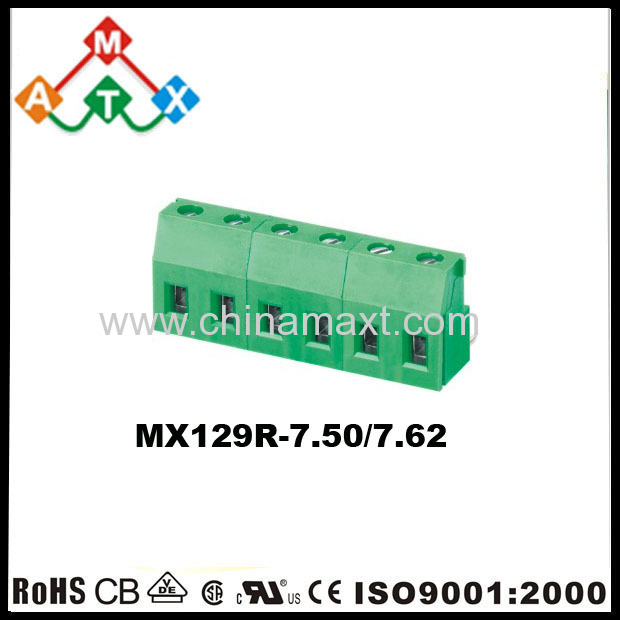

PCB Euro type Terminal Blocks Terminal Connector

There are 5.00mm, 5.08mm, 7.50mm, 7.62mm pitch for selection. Below is the information of PCB Euro Terminal Blocks Terminal Connector:

1. Pitch: 5.00mm, 5.08mm, 7.50mm, 7.62mm

2. Material

Screws: M3.0 steel Zinc plated

Clamp: Brass,Ni Plated

Pin Header: Brass, tin plated

Housing: PA66, UL94V-0

3. Electrical

Rated voltage: 300V

Rated current: 20A

Contact resistance: 20mΩ

Insulation resistance: 5000MΩ/1000V

Withstanding Voltage: AC2000V/1Min

Wire range: 24-12AWG 4.0mm²

4. Mechanical

Temp.Range: -40℃~+105℃

MAX Soldering: +250C for 5 Sec.

Torque: 0.5N.m 4.4Lb.in

Strip length: 6-7mm.

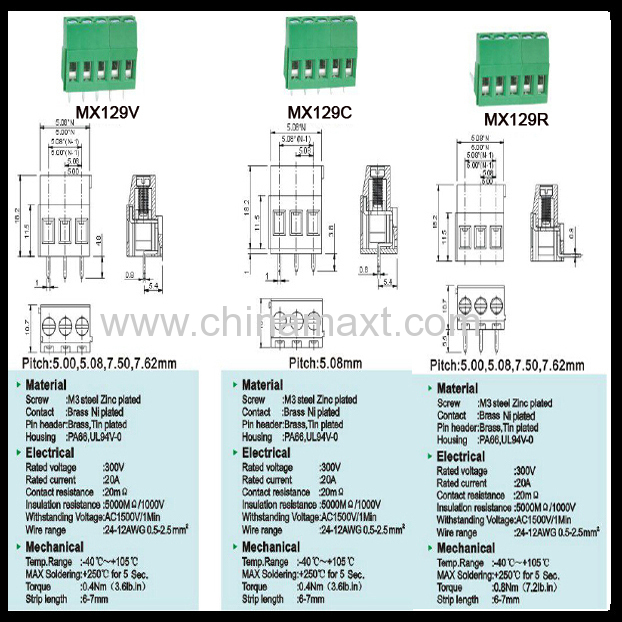

Drawing of 20A PCB Euro Terminal Blocks Terminal Connector for reference, more information would be sent on your request.

Specification of PCB Euro Terminal Blocks Terminal Connector

Item NO.	MX129R
Pitch	5.00mm, 5.08mm, 7.50mm, 7.62mm
Screws	M3.0 steel Zinc plated
Clamp	Brass,Ni Plated
Pin Header	Brass, tin plated
Housing	PA66, UL94V-0
Rated voltage	300V
Rated current	20A
Contact resistance	20mΩ
Insulation resistance	5000MΩ/1000V
Withstanding Voltage	AC2000V/1Min
Wire range	24-12AWG 4.0mm²
Temp.Range	-40℃~+105℃
MAX Soldering	+250C for 5 Sec.
Torque	0.5N.m 4.4Lb.in
Strip length	6-7mm.
package	we packed in the standard cartons:282842cm,or as your requirement
Payment	100% TT before shippment

Noted:

Dear friend,thank you very much for you pay attention to PCB Euro Terminal Blocks In Electrical Contacts, please feel free to contact Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
