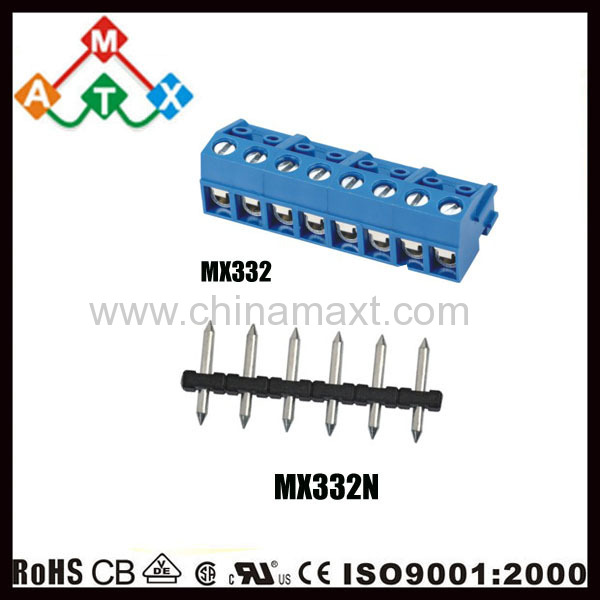

5.00mm Terminal Blocks In Electronic Contacts

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX332

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Rated voltage: 300V

Contact resistance: 20mΩ

Withstanding Voltage: AC2000V/1Min

Temp.Range: -40℃~+105℃

Strip length: 5-6mm

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Pitch: 5.00mm

Rated current: 10A

Insulation resistance: 5000MΩ/1000V

Wire range: 28-16AWG 1.5mm²

Torque: 0.4.m 3.5Lb.in

1. 300V Rated Voltage
2. 10A Rated current
3. 5000MΩ/1000V Insulation resistance
4. AC2000V/1Min Withstanding Voltage
5. +250℃ for, 5 Sec.

5.00mm pitch Terminal Blocks with UL and TUV approval In Electronic Contacts

Below is the information of 5.00mm Terminal Blocks In Electronic Contacts

1. Pitch: 5.00mm

2. Screws: M2.5 steel Zinc plated
3. Reed: Phosphor bronze, Ni plated or stainless steel

4. Item NO. : MX332

5. Housing: PBT, UL94V-0

6. Rated voltage: 300V

7. Rated current: 10A

8. Contact resistance: 20mΩ

9. Insulation resistance: 5000MΩ/1000V

10. Withstanding Voltage: AC2000V/1Min

11. Wire range: 28-16AWG 1.5mm²

12. Temp.Range: -40℃~+105℃

13. MAX Soldering: +250℃ for, 5 Sec.

14. Torque: 0.4.m 3.5Lb.in

15. Strip length: 5-6mm.

Below is the drawing of 5.00mm Terminal Blocks In Electronic Contacts for reference, more information would be sent on your request.

Details of 5000MΩ/1000V 5.00mm Terminal Blocks In Electronic Contacts

Item NO.	MX332
Pitch	5.00mm
Screws	M2.5 steel, zinc plated
Reed	Phosphor bronze, Ni plated or stainless steel
Housing	PBT, UL94V-0
Rated voltage	300V
Rated current	10A
Contact resistance	20mΩ
Insulation resistance	5000MΩ/1000V
Withstanding Voltage	AC2000V/1Min
Wire range	28-16AWG 1.5mm²
Temp.Range	-40℃~+105℃
MAX Soldering	+250℃ for, 5 Sec.
Torque	0.4.m 3.5Lb.in
Strip length	5-6mm.
package	we packed in the standard cartons:282842cm,or as your requirement
Payment	100% TT before shippment

Packing

Use

A terminal block must first be mounted in a safe, stable location away from moisture. To use it, strip about ½ inch of insulation from the two wires you want to connect. You then insert the bare wires into the block's metal connectors and screw them down until they're securely fastened.

Our promise to customers:

1)We can delivery the samples for your test free of charge

2)Our products are all guaranteed,you will have no worry to use.

3)We will delivery the order strictly as the order confirmed!

Ask and Answer:

1)How to get the best price?

Please tell us the part number or give me the link or the picture by E-mail,Skype or Phone.

2)Is the samples for free?

Yes,we can send the free samples to you.

3)How long can get the reply?

If you send an inquiry to us,we can reply to you in 18 hours.

4)How to order 5.00mm Terminal Blocks In Electronic Contacts:

Noted
Dear friend,thank you very much for you pay attention to our terminal blocks,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
Thank you very much for your attention to terminal blocks connectors
