Product Detail

Model No.: MX301V

Production Capacity: 500000pins

Delivery Date: Standard delivery date is 1...

Pitch: 5.0mm

Contact: Phosphor bronze,Ni Plated

Rated Voltage: 300V

Color: Blue

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Brand Name: MATX

Plastic: PBT,UL94V-0

Pin header: Brass,Tin Plated

Rated Current: 12A

Place of Origin: ZheJiang,China(mainland)

1.Pitch:5.0mm
2.Pin header: Brass Tin Plated
3.Housing:PBT UL94V-0
4.Wire range:22-14AWG 2.5mm²
5.Rated Voltage/Current:300V 12A
6.Color:Blue

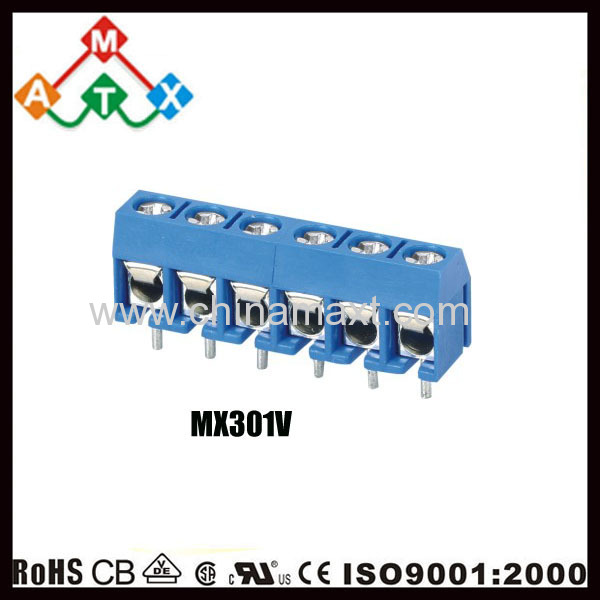

With UL and TUV approval screw type terminal block connectors

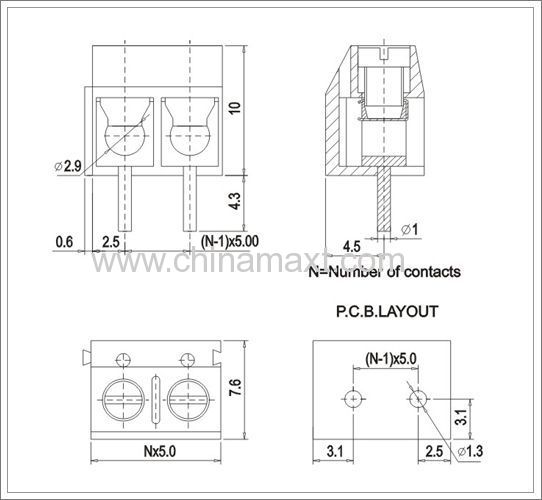

VDE certification screw terminal block connectors drawing

screw terminal block connectors details

Features:
Product Name	Euro type screw terminal blocks
Model Number	MX301V
Pitch	5.0mm
Material
Screw	M2.5 steel zinc plated
Contact	Phosphor bronze,Ni plated or Stainless steel
Housing	PBT,UL94V-0
Electrical
Rated Voltage	300V
Rated Current	12A
Contact Resistance	20mΩ
Insulation Resistance	5000mΩ/1000v
Withstanding Voltage	AC1500V/1 Min
Wire Range	22-14AWG 2.5mm²
Mechanical
Temperature Range	-30°C-+120°C
Max.Soldering	+250°C for 5seconds
Torque	0.4Nm(3.6lb.in)
Strip Length	4.5-5mm

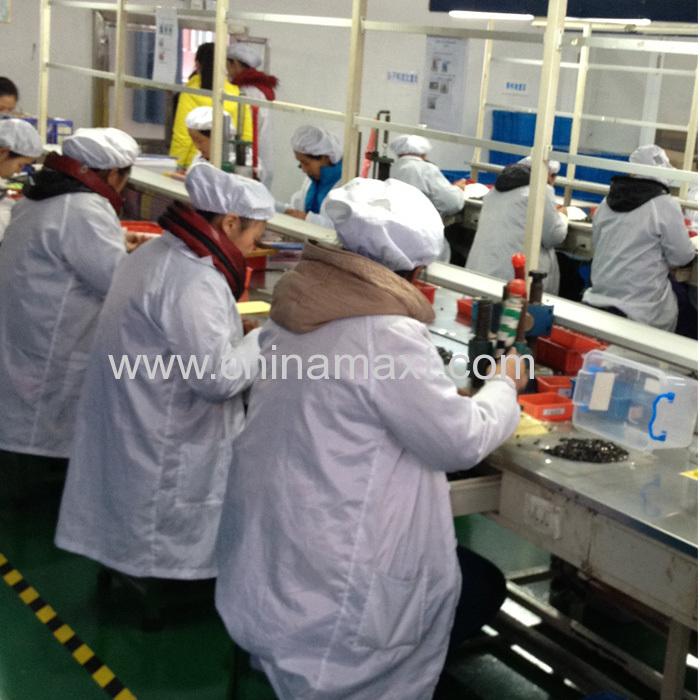

Workshop

PCB screw terminal connector application
