You are here: home  > Pluggable Terminal Blocks  > 5.00mm Pluggable Terminal Blocks  > Pluggable Terminal Connector Blocks
  • Pluggable Terminal Connector Blocks
  • Pluggable Terminal Connector Blocks
  • Pluggable Terminal Connector Blocks

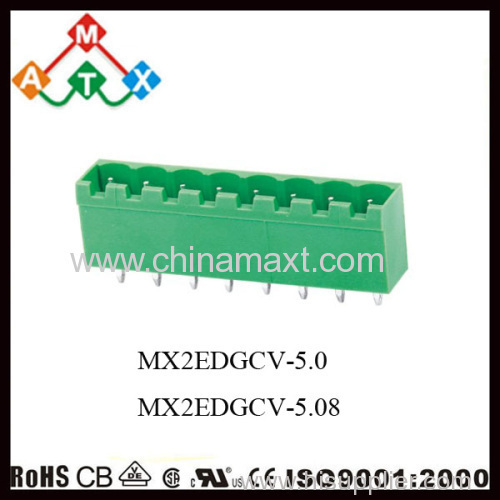

Enlarge Pluggable Terminal Connector Blocks

Pluggable Terminal Connector Blocks

Price: 0.01 USD
Payment Terms: T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: MX2EDGCV
Production Capacity: 500000pins/day
Delivery Date: according to the order quan...
Rated Voltage: 300V
Rated Corrent: 15A
Insulation Resistance: 5000MΩ/1000V
Temperature Range: -40℃~+105℃
cartons: 28*28*42cm
Means of Transport: Ocean,Land,Air
Packing: inner plastic bag,inner box...
Pitch: 5.00/5.08mm
Housing: PA66,UL94V-0
Contact Resistance: 20mΩ
Withstanding Voltage: AC2000V/1Min
Max Soldering: +250℃,5 Seconds

1. Rated Voltage: 300V
2. Rated Corrent:15A
3.Contact Resistance: 20mΩ
4.Insulation Resistance: 5000MΩ/1000V
5. Pitch:5.00mm
6.Carton: 28*28*42

Pluggable Terminal Connector Blocks

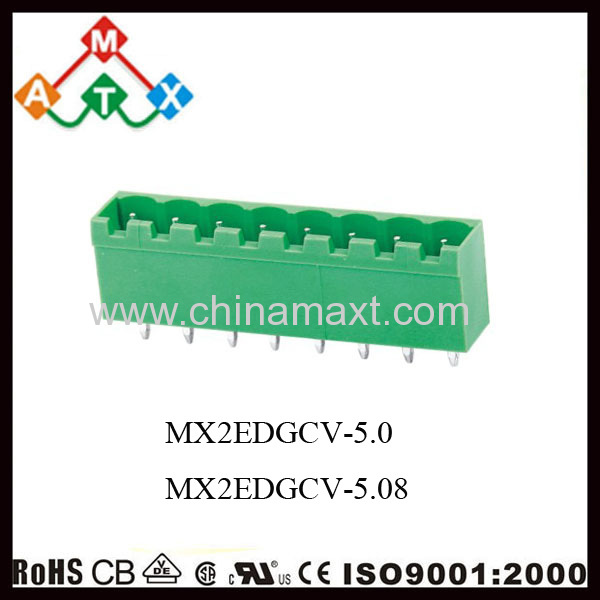

Picture of Pluggable Terminal Connector Blocks.  with pitch 5.00mm, 5.08mm, 7.50mm, 7.62mm for selection. OEM service is available.

Below is the information of  Pluggable Terminal Connector Blocks

1. Pitch: 5.00mm, 5.08mm, 7.50mm, 7.62mm

2. Pin Header:  Brass, Tin plated3.

4. Housing: PA66, UL94V-0

5. Rated voltage: 300V

6. Rated current: 15A

7. Contact resistance: 20mΩ

8. Insulation resistance: 5000MΩ/1000V

9. Withstanding Voltage: AC2000V/1Min

10. Temp.Range: -40℃~+105℃

11. MAX Soldering: +250℃ for, 5 Sec.

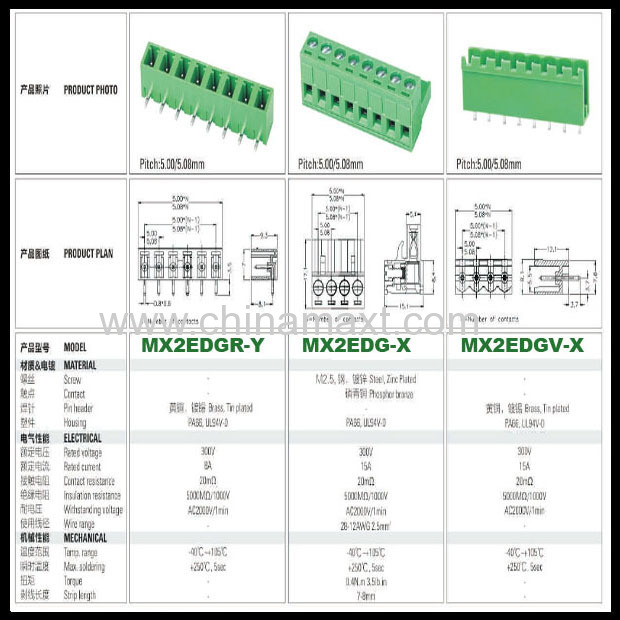

Drawing of Pluggable Terminal Connector Blocks, more information would be sent on your requirest.



Details of  Pluggable Terminal Connector Blocks

Item NO.MX2EDGCV-X
Pitch

5.00mm, 5.08mm, 7.50mm, 7.62mm

Pin HeaderBrass, tin plated
HousingPA66, UL94V-0
Rated voltage300V
Rated current15A
Contact resistance20mΩ
Insulation resistance5000MΩ/1000V
Withstanding VoltageAC2000V/1Min
Temp.Range-40℃~+105℃
MAX Soldering+250℃ for, 5 Sec.
packagewe packed in the standard cartons:28*28*42cm,or as your requirement
 Payment100% TT before shippment

Why buy Pluggable Terminal Connector Blocks

  • a comprehensive series of plug-in connectors for PCB

  • excellent price/ quality ratio

  • wide range of versions

  • 2-24 poles (modular- connectable to more poles)

  • pitch 3.5-10.16 mm

  • also available versions with screw securing (on sides)

  • "wire to wire" connection is also possible

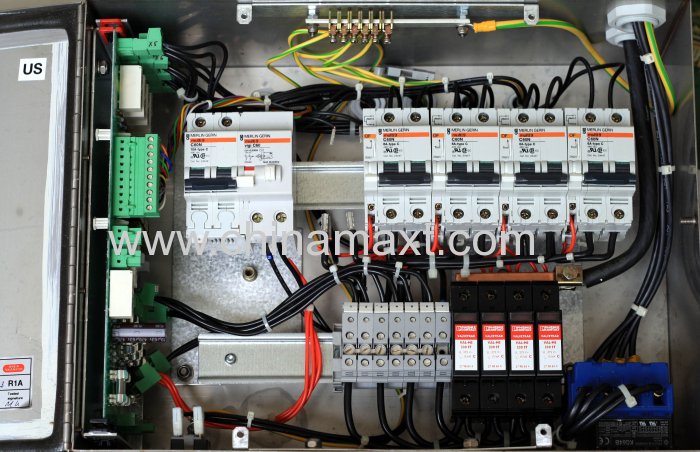

The application of Pluggable Terminal Connector Blocks

Noted:

Dear friend,thank you very much for you pay attention to Terminal Blocks In Terminal Connectors, please feel free to contact Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
