Pitch 5.00mm Pluggable Terminal Block 300V 15A Plug in terminal blocks connectors

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX2EDGKA

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Model No: MX2EDGKA

Screw: M2.5,steel,zinc plated

Housing: PA66,UL94V-0

Rated Corrent: 15A

Strip length: 7-8mm

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Brand Name: MATX

Pitch: 5.0mm

Contact: Phosphor bronze

Rated Voltage: 300V

Wire Range: 28-12AWG 2.5mm²

Color: Green

1.Pitch:5.0mm
2.Screw:M2.5,steel,zinc plated
3.Housing:PA66, UL94V-0
4.Wire range:28-12AWG 2.5mm²
5.Rated Voltage/Current:300V 15A
6.Color:Green

5.00mm pitch Pluggable Terminal Block 300V 15A,it is a female type,the pitch have 5.00mm,5.08mm,7.50mm,7.62mm.the quality is high and the price is quite competitive.it is used with MX2EDGCV or MX2EDGV or MX2EDGCR or MX2EDGR.

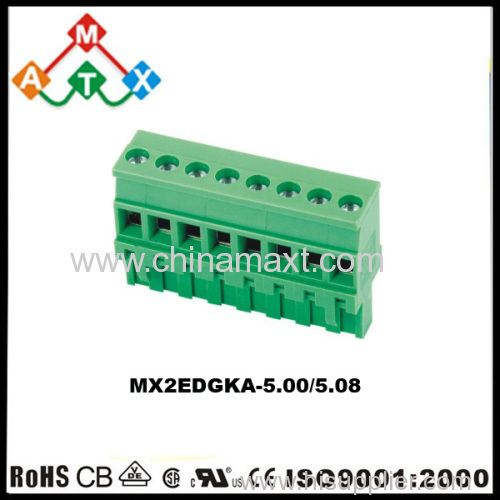

1.Picture of Pitch 5.00mm Pluggable Terminal Block 300V 15A

2.Datasheet and Drawing of Pitch 5.00mm Pluggable Terminal Block 300V 15A

3.Details of Pitch 5.00mm Pluggable Terminal Block 300V 15A

Pitch:5.00mm

Material

Screw;M2.5 Steel Zinc Plated

Contact:Phosphor Bronze

Housing:PA66,UL94V-0

Electrical

Rated Voltage:300V

Rated Corrent:15A

Contact Resistance:20mΩ

Insulation Resistance:5000MΩ/1000V

Withstanding Voltage:AC1500V/1Min

Wire Range:28-12AWG 2.5mm²

Mechanical

Temperature Range:-40℃~+105℃

Max Soldering:+250℃,5 Seconds

Strip Length:7-8mm

Part number	MX2EDGKA-5.0
Pitch	5.0mm
Material	PA66, UL94V-0
Rated voltage/current	300V/15A
Contact	Phosphor bronze
Wire range	28-12AWG 2.5mm²
Strip length	7-8mm.
Temp. Range	-40℃~+105℃
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

Noted
Dear friend,thank you very much for you pay attention to our terminal blocks,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
