5.0 mm 5.08 mm PCB Pluggable Terminal Blocks connectors 2EDG

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX2EDGK

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Color: Green

Screw: M2.5,steel,zinc plated

Housing: PA66,UL94V-0

Rated Corrent: 15A

Strip length: 7-8mm

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Model No: MX2EDGK

Pitch: 5.0mm

Contact: Phosphor bronze

Rated Voltage: 300V

Wire Range: 14-24AWG 2.5mm²

1.Pitch:5.0mm
2.Screw:M2.5,steel,zinc plated
3.Housing:PA66, UL94V-0
4.Rated Voltage/Current:300V 15A
5.Place of origin:Zhejiang,China

5.0 mm 5.08 mm PCB Pluggable Terminal Blocks connectors 2EDGK with UL and TUV approval,it is a female type,the pitch is 5.0mm we also have 5.08mm,7.50mm,7.62mm,it is worked together with MX2EDGV-5.0,MX2EDGR-5.0,MX2EDGVC-5.0,MX2EDGRC-5.0.

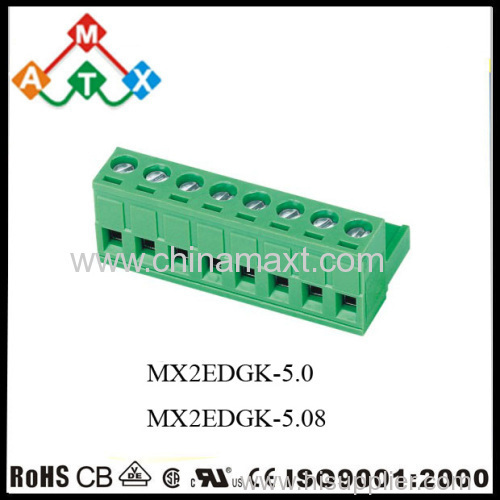

Picture of 5.0 mm 5.08 mm PCB Pluggable Terminal Blocks connectors 2EDGK
Datasheet of 5.0 mm 5.08 mm PCB Pluggable Terminal Blocks connectors 2EDG

3.Description of 5.0 mm 5.08 mm PCB Pluggable Terminal Blocks connectors 2EDGK

Pitch:5.00mm

Material

Screw;M2.5 Steel Zinc Plated

Contact:Phosphor Bronze

Housing:PA66,UL94V-0

Electrical

Rated Voltage:300V

Rated Corrent:15A

Contact Resistance:20mΩ

Insulation Resistance:5000MΩ/1000V

Withstanding Voltage:AC1500V/1Min

Wire Range:28-12AWG 2.5mm²

Mechanical

Temperature Range:-40℃~+105℃

Max Soldering:+250℃,5 Seconds

Strip Length:7-8mm

Part number	MX2EDGK-5.0
Pitch	5.0mm
Material	PA66, UL94V-0
Rated voltage/current	300V/15A
Contact	Phosphor bronze
Wire range	28-12AWG 2.5mm²
Strip length	7-8mm.
Temp. Range	-40℃~+105℃
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

4.Related products of pluggable terminal blocks PCB connectors 5.0mm pitch 2EDG series

5.Packing of 5.0mm 5.08mm 2EDG PCB Plug in Terminal Block connector pluggable terminal blocks

we always packed in three steps:inner plastic bag,inner box,export carto
our standard export Carton is:28*28*42cm
we can also packed the producrs as your special requirement

6.Equipments

7.Production application

8.Promise:

1)We are a professional manufacturer of electronic components in NingBo,all of our products are promised to guarantee.

2)Free samples will be sent in 1-3 days if need.

3)Many of our products are in stock,we can provide the goods to you very soon.

9.Advantage:

1)Our factory located in Ningbo which is one of the largest ports in China.

2)Most of our engineers and workers are dealing with the terminal blocks more than 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products are assembling by automatic machines,so our quality is high and the price is pretty competitive

5)All of us are studing advanced technology and concept frequently

10.Noted

Dear friend,thank you very much for you pay attention to MX15EDGKM,please contact Angelo at any time,I will give you a quick reply and try my best to do all the thing well.
