300V 8A 3.50mm Pluggable Terminal Connector

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX15EDGCVM

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Pitch: 3.50/3.81mm

Rated Voltage: 300V

Housing: PA66,UL94V-0

Temperature Range: -40centigrade~+105 centigra...

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Brand Name: MATX

Rated Current: 8A

Pin header: Brass, Tin plated

Withstanding Voltage: AC1500V/1Min

Max Soldering: +250 centigrade,5 Seconds

1. AC1500V/1Min Withstanding Voltage
2. Brass, Tin plated Pin header
3. 8A rated current
4. 300V rated voltage
5. 20mΩ Contact Resistance

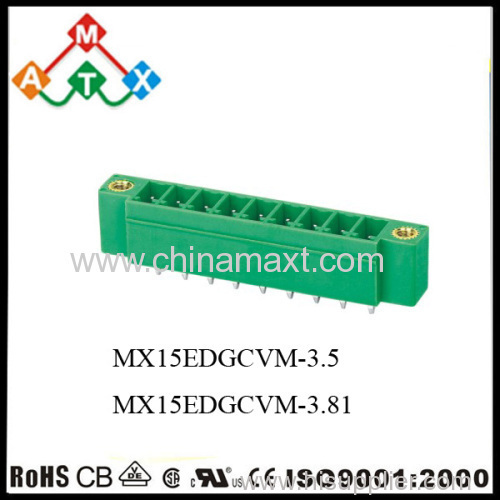

300V 8A 3.50mm Pluggable Terminal Connector

Below is the picture for reference, more information would be sent on your request.

Details of 300V 8A 3.50mm Pluggable Terminal Connector

1. Pitch: 3.50mm, 3.81mm

2. Material

Pin header: Brass, tin plated

Housing: PA66,UL94V-0

3. Electrical

Rated Voltage: 300V

Rated Current: 8A

Contact Resistance: 20mΩ

Insulation Resistance: 5000MΩ/1000V

Withstanding Voltage: AC1500V/1Min

4. Mechanical

Temperature Range:-40℃~+105℃

Max Soldering: +250℃,5 Seconds

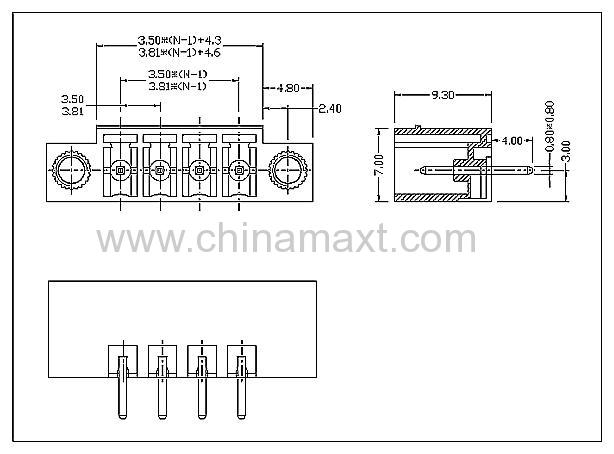

Below is the 300V 8A 3.50mm Pluggable Terminal Connector for reference, more information would be sent on your request.

Specification of 300V 8A 3.50mm Pluggable Terminal Connector

Item NO.	MX15EDGCVM
Pitch	3.50mm, 3.81mm
Pin header	Brass, tin plated
Housing	PA66,UL94V-0
Rated Voltage	300V
Rated Current	8A
Contact Resistance	20mΩ
Insulation Resistance	5000MΩ/1000V
Withstanding Voltage	AC1500V/1Min
Temperature Range	-40℃~+105℃
Max Soldering	+250℃,5 Seconds
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

Datasheet of MX15EDGCVM

Package of 300V 8A 3.50mm Pluggable Terminal Connector

1)we always packed in three steps:inner plastic bag,inner box,export carton

2)our standard export Carton is:28*28*42cm

3)we can also packed the producrs as your special requirement

Use

A terminal block must first be mounted in a safe, stable location away from moisture. To use it, strip about ½ inch of insulation from the two wires you want to connect. You then insert the bare wires into the block's metal connectors and screw them down until they're securely fastened.

Special Functions

While most terminal blocks simply create an electrical connection, some have built-in fuse holders, indicator lamps or other features that add functionality for more sophisticated applications.

Variety

You can find dozens of types of terminal blocks, some generic, some specialized. Designers have developed terminal blocks for household, industrial, electronic and many other uses

Noted
Dear friend,thank you very much for you pay attention to our terminal blocks,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
Thank you very much for your attention to terminal blocks connectors
