Pluggable terminal blocks connector MX15EDGCRM manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX15EDGCRM

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Pitch: 3.81

Screw: M2,steel,zinc plated

Cantact: Phosphor bronze

Rated Corrent: 8A

Strip length: 5-6mm

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Model No: MX15EDGCRM

Color: Green

Housing: PA66,UL94V-0

Rated Voltage: 300V

Wire Range: 28-16AWG 0.5-1.5mm²

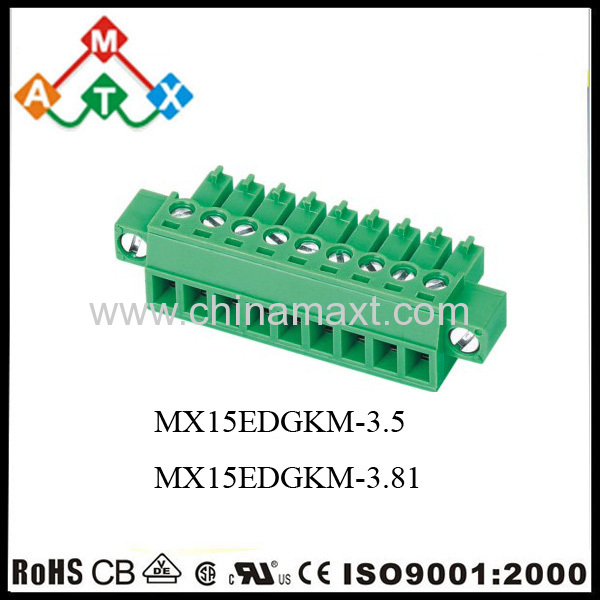

1.Model No: MX15EDGKM
2.Pitch: 3.81mm
3.Housing:PA66 UL94-0
4.Rated Voltage and Corrent: 300V 8A
5.Wire Range:28-16AWG 0.5-1.5mm²
6.Color:Green

3.81mm 300V 8A PCB Pluggable Terminal Blocks,it is a female type,the pitch is 3.81mm,3.50mm,it is worked with MX15EDGCV-3.81,MX15EDGCR-3.81

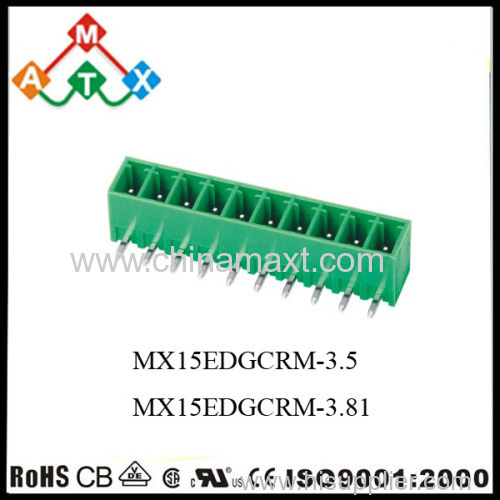

Picture of Pluggable terminal blocks
Datasheet of Pluggable terminal blocks

3. Datails of Pluggable terminal blocks

Pitch:3.81mm

Material

Screw;M2.0 Steel Zinc Plated

Contact:Phosphor Bronze

Housing:PA66,UL94V-0

Electrical

Rated Voltage:300V

Rated Corrent:8A

Contact Resistance:20mΩ

Insulation Resistance:5000MΩ/1000V

Withstanding Voltage:AC1500V/1Min

Wire Range:28-16AWG 0.5-1.5mm²

Mechanical

Temperature Range:-40℃~+105℃

Max Soldering:+250℃,5 Seconds

Strip Length:5-6mm

Part number	MX2EDGCRM-3.81
Pitch	3.81mm
Material	PA66, UL94V-0
Rated voltage/current	300V/8A
Contact	Phosphor bronze
Wire range	28-16AWG 0.5-1.5mm²
Strip length	5-6mm.
Temp. Range	-40℃~+105℃
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

4.Package of Pluggable connector plug-in terminal block

1)we always packed in three steps:inner plastic bag,inner box,export carto

2)our standard export Carton is:28*28*42cm

3)we can also packed the producrs as your special requirement

5.workshop

6.Equipment

7.Stock

8.Product Application

9.Promise:

1)We are a professional manufacturer of electronic components in NingBo,all of our products are promised to guarantee.

2)Free samples will be sent in 1-3 days if need.

3)Many of our products are in stock,we can provide the goods to you very soon.

10.Advantages:

1)Our factory located in Ningbo which is one of the largest ports in China.

2)Most of our engineers and workers are dealing with the terminal blocks more than 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products are assembling by automatic machines,so our quality is high and the price is pretty competitive

5)All of us are studing advanced technology and concept frequently

11.Noted:

Dear friend,thank you very much for you pay attention to this type,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
