Model No.: MX1001

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Cover: UL94V-0 PBT Thermoplastic, ...

Operation Temp: -20º C to 70º C

Electrical Life: 2000 operations per switch ...

cover: UL94V-0 PBT Thermoplastic r...

Means of Transport: Ocean,Land,Air

Packing: Tube or Tape and Reel

Colour: Red,Blue

Switching rating: 25mA, 24VDC

Capacitance: 5pF max.

Base: UL94V-0 PBT Thermoplastic, ...

button: UL94V-0 PBT Thermoplastic w...

1. 24VDC Max. Current
2. 25mA Max. Voltage
3. 2.54mm Pitch
4. -20º C to 70º C Operation Temp
5. 5pF max. Capacitance
6.Switching rating25mA,24VDC

2.54mm pitch PCB DIP Switch In Electronic Components

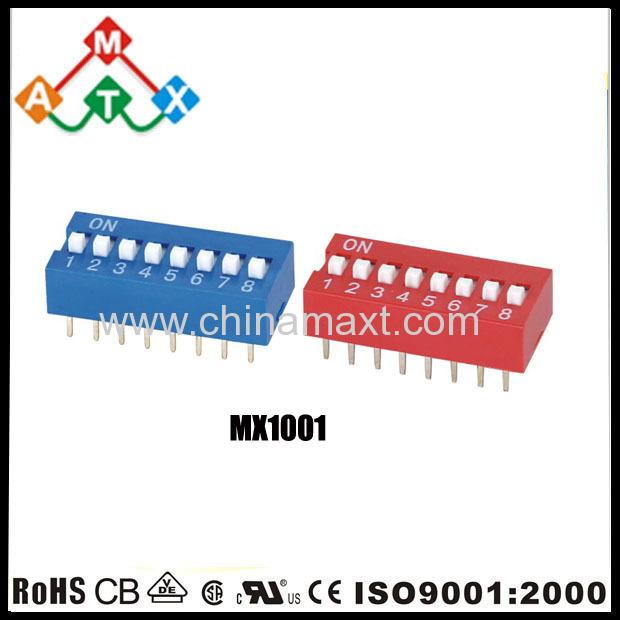

1. Model No.: MX1001

2. Production Capacity: 500000pins/day

3. Delivery Date: according to the order quantity

4. Max. Current: 24VDC

5. Color: Red,Blue

6. Cover: UL94V-0 PBT Thermoplastic, black

7. Electrical life: 2000 operations per switch 24VDC,25mA

8. Means of Transport: Ocean,Land,Air

9. Packing: Tube or Tape and Reel

10. Brand Name: MATX

11. Max. Voltage: 25mA

12. Pitch: 2.54mm

13. Base: UL94V-0 PBT Thermoplastic, black

14. Terminal: copper alloy plating

Specification Of 2.54mm PCB DIP Switch In Electronic Components

Part number	MX1001
Material	UL94-0 PBT Thermoplastic
Switching rating	25mA, 24VDC
Operation Temp	-20º C to 70º C
Capacitance	5pF max.
Color	Red,blue
Electrical Life	2000 operations per switch 24VDC,25mA
packing	we pack the goods in plastic tubing,then into the cartons,or we pack goods with tape and reel
shipping date	strictly as the order confrimed
Payment	T/T,Paypal.

Material Of 2.54mm PCB DIP Switch In Electronic Components
Base	UL94V-0 PBT Thermoplastic, black
cover	UL94V-0 PBT Thermoplastic red,blue
button	UL94V-0 PBT Thermoplastic white
terminal	copper alloy plating

About Electrical

Electrical life	2000 operations per switch 24VDC,25mA
Non-switching rating	100mA,50VDC
Switching rating	25mA,24VDC
the contact impedance	A initial value of the maximum 50mΩ, B testing after the maximum 100mΩ.
insulation resistance	(At 500VDC) 100mΩ min
dielectric strength	500VAC/1minute
capacitance	Max 5 pF
the loop	single contact single selection

About Mechanical

operating force	8N(max)
stroke	2.00mm
operation temp	-20℃~+70℃
storage temp	-40℃~+85℃

The loop single contact single selection
1. For best results,please follow these recommendation:keep all swith contacts in their "OFF" position for all operations
2. wave soldering: recommended solder temperature at 250±5℃,3-5 seconds.
3. Hand welding:use 30 watt iron control temperature at 320℃.the welding time is about 2 seconds.
4. cleaning:cleaning process using ultrasonic method,can give better results,use steam mode,temperature should not exceed 51℃.

The loop single contact single selection

1. For best results,please follow these recommendation:keep all swith contacts in their "OFF" position for all operations

2. wave soldering: recommended solder temperature at 250±5℃,3-5 seconds.

3. Hand welding:use 30 watt iron control temperature at 320℃.the welding time is about 2 seconds.

4. cleaning:cleaning process using ultrasonic method,can give better results,use steam mode,temperature should not exceed 51℃.

Dimension

part number	position	DIM.A.(mm)
MX 1001-1P	1	3.90
MX 1001-2P	2	6.64
MX 1001-3P	3	9.18
MX 1001-4P	4	11.72
MX 1001-5P	5	14.20
MX 1001-6P	6	16.80
MX 1001-7P	7	19.34
MX 1001-8P	8	21.88
MX 1001-9P	9	24.42
MX 1001-10P	10	26.96
MX 1001-12P	12	32.04

Package of 2.54mm PCB DIP Switch In Electronic Components

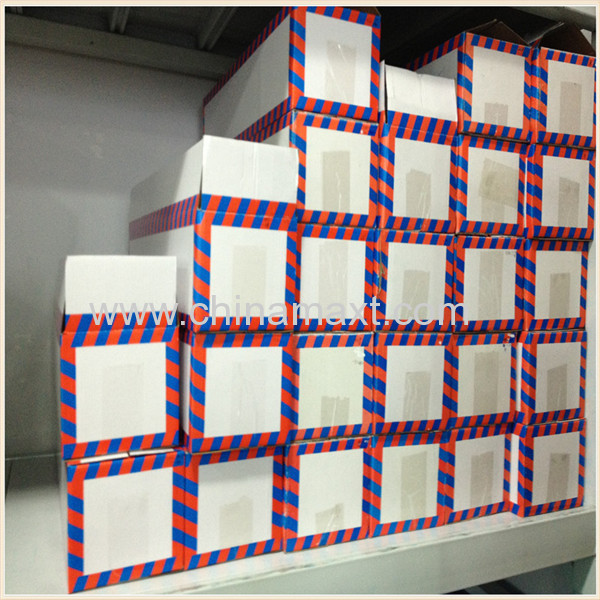

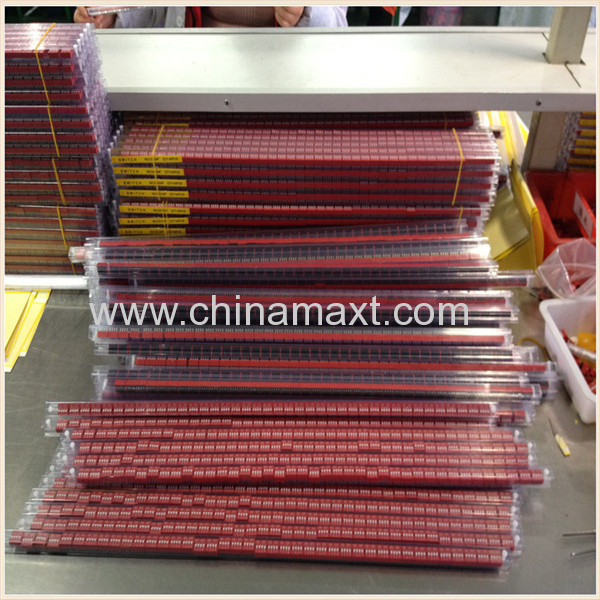

1.we pack the DIP Switch with IC TUBE or Tape and Reel,so keep the goods are in high quality when delivery.

2.we pack the DIP SWITCH with two steps,inner is tube or tape and reel,outer is carton.

3.we pack the DIP SWITCHas your special requirements.

part number	Quantity/tube	Quantity/reel
MX 1001-1P	120	800
MX 1001-2P	70	800
MX 1001-3P	50	800
MX 1001-4P	40	800
MX 1001-5P	33	800
MX 1001-6P	28	800
MX 1001-7P	24	800
MX 1001-8P	21	800
MX 1001-9P	19	800
MX 1001-10P	17	800
MX 1001-12P	14	800
