FC Fiber Optic Patch Cord Optical Patch Cable

Price:	2.0 USD
Payment Terms:	T/T,WU,Money Gram;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: VPCFC

Production Capacity: 100000PCS /Month

Delivery Date: as the order quantity

Type: FC

Repeatability(dB): ≤ 0.20

Insert Loss(dB): ≤ 0.20

Industry Standard: ROHS.IEC.GR-326

Storage Temperature(℃): -40℃-+85℃

Means of Transport: Ocean,Land,Air

Packing: Carton or upon on requests.

Brand Name: VTOM

Polish Type: PC/UPC/APC

Exchangeability(dB): ≤ 0.20

Resistance(≥1000)(dB): ≤ 0.20

Operating Temperature(℃): -40℃-+85℃

Place of Origin: ZheJiang,China(mainland)

Insert Loss:SM/PC(≤0.30dB),SM/UPC(≤0.30dB),SM/APC(≤0.30dB),MM(≤0.20dB)
Return Loss:SM/PC(≥45dB),SM/UPC(≥50dB),SM/APC(≥60dB),

FC Fiber Optic Patch Cord, welcom to our website to see fiber optic patch cord. We have SC,LC,FC,ST,MU,MPO.E2000 and Armored Fiber Optic Patchcord for your good choice.

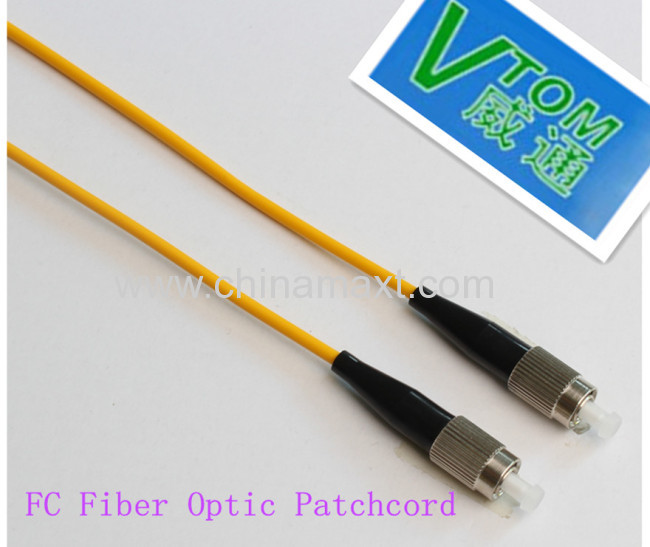

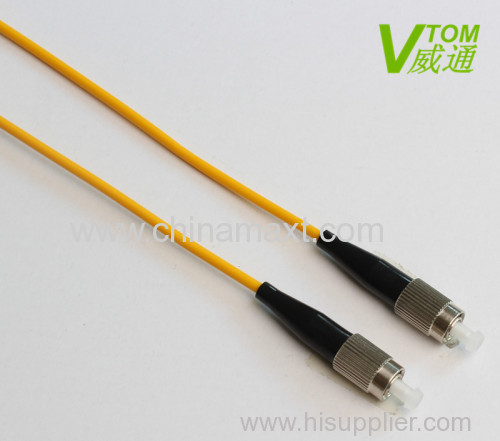

The Picture of FC Fiber Optic Patch Cord Optical Patch Cable
Fiber optic adapter provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together
Specification

Type	SM			MM
Type	PC	UPC	APC	/
Insert Loss	≤0.30dB	≤0.30dB	≤0.30dB	≤0.20dB
Return Loss	≥45dB	≥50dB	≥60dB	/
Repeatability	≤0.2dB
Exchangeability	≤0.2dB
Resistance(≥1000 times)	≤0.2dB
Industry Standard	ROHS,IEC , GR-326
Operating Temperature	-40℃～+85℃
Storage Temperature	-40℃～+85℃

Application
Telecommunication
Test equipment
Fiber to the home
LANS WANS
CATV
Fiber optic sensors
Features
Low insert loss
High return loss
Compact andante-pull design ,corrosion resistant body
High reliability
Simplex and duplex for standard
Easy installation
Comply with Telcordia GR-326-CORE,ICE Standard
Order Information

VPCFC-----------------XX-----------XX--------------X----------X-----------XXXX
	Model	fiber type	fiber diameter	Fiber Length	Connector Type
V=Vtom	SM=Singlemode	SX=Simplex	Φ0.9	1.0M	FC/UPC
PC=Patchcord	MM=Multimode 50/125um	DX=Duplex	Φ2.0	1.5M	FC/APC
FC=FC Type	MM=Multimode 62.5/125um	4 cores	Φ3.0	2.0M
		6cores	…	3.0M
		8cores		5.0M
		12cores		10.0M

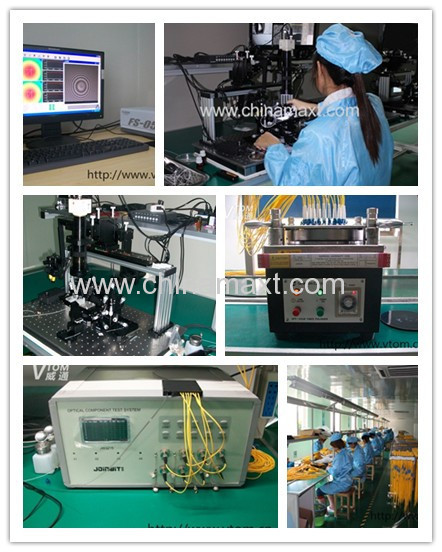

Equipments
Advantage:
1)We can delivery the samples for your test free of charge
2)Our products are all guaranteed,you will have no worry to use.
3)We will delivery the order strictly as the order confirmed!
4)Many of our products assembling by automatic machine,,so that we not only can increase production,control the quality very well,but also we can lower the cost and offer our best competitive price to our customers
5)we have high quality
