Right angle 7.62mm Barrier Terminal Blocks connector power terminal block,the pitch is 7.62mm ,the pin is 90 degree,the color is black and it is 300V/20A

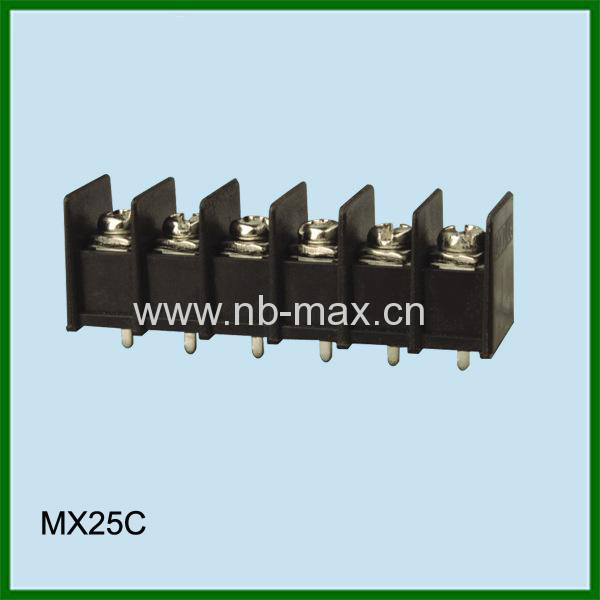

1.Picture of right angle 7.62mm Barrier Terminal Blocks connector power terminal block

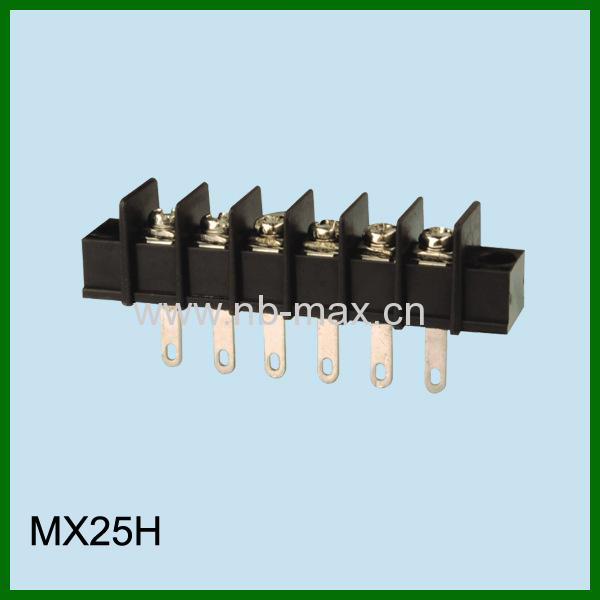

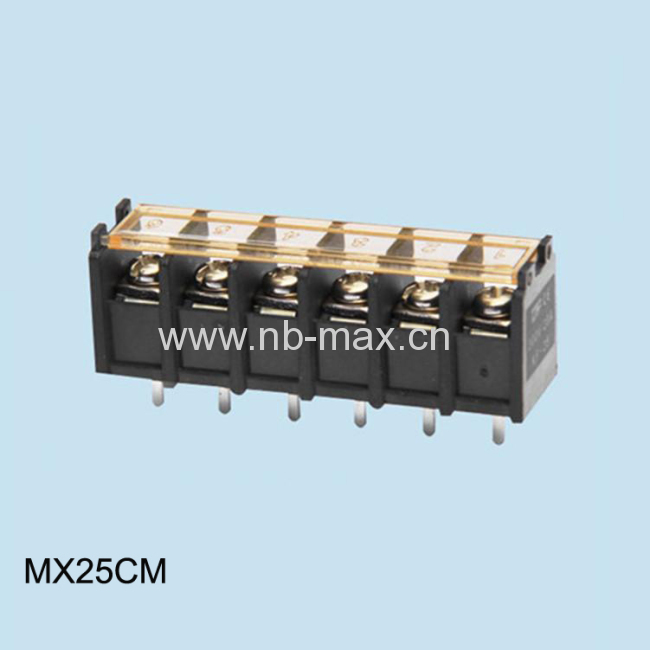

2.Similar products with barrier terminal blocks 7.62mm Horizontal pin header

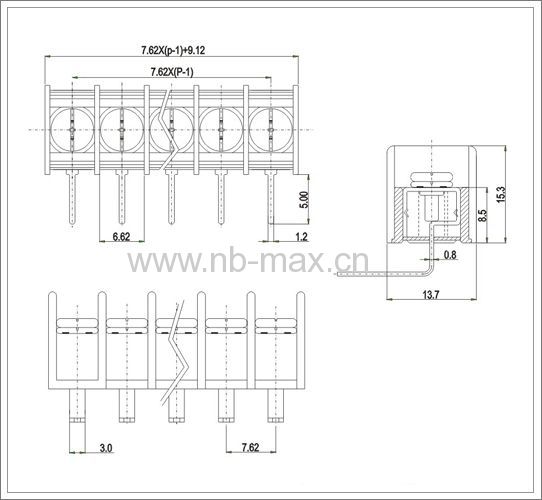

3.Datasheet of right angle 7.62mm Barrier Terminal Blocks connector power terminal block

4.Details of right angle 7.62mm Barrier Terminal Blocks connector power terminal block

     Pitch:7.62mm

     Material

     Screw:M3,steel,Ni plated

     Terminal:Brass,Tin plated

     Housing:PA66,UL94V-0

     Electrical

     Rated Voltage:300V

     Rated Corrent:20A

     Contact Resistance:20mΩ

     Insulation Resistance:5000MΩ/DC500V

     Withstanding Voltage:AC2000V/1Min

     Mechanical

     Temperature Range:-40℃~+105℃

     Wire Range:22-14AWG

     Torque:0.5N.m4.4Lb.in

5.Package of Barrier Terminal Blocks connectors 7.62mm pitch Horizontal pin header

  1)we always packed in three steps:inner plastic bag,inner box,export carto

  2)our standard export Carton is:28*28*42cm,or 63.5*28.8*40.5cm

  3)we can also packed the producrs as your special requirement

6.Stock

7.Equipments

8.Advantage:

1)Our factory located in Ningbo which is one of the largest ports in China.

2)Most of our engineers and workers is dealing with the terminal blocks more 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products assembling by automatic machine,which will save a lot of cost and time.

5)All of our staff study advanced science and technology every month.

9.Promise to customers:

1)We can delivery the samples for your test free of charge

2)Our products are all guaranteed,you will have no worry to use.

3)We will delivery the order strictly as the order confirmed!

10.What is a terminal block

When you have a set of electrical wires to connect, a terminal block provides a safe, convenient way to keep them organized. They are rugged, easy to use and designed to keep wires of varying gauges securely connected.

Function

A terminal block is a set of two or more similar screw-down connection points. You can connect wires

at these points. A terminal strip combines many similar blocks in a single device. In a strip, the blocks are insulated from one another.

Materials

A terminal block's main functions are to connect and to insulate. The main block body is made of a tough material, such as plastic or ceramic, that electrically isolates adjacent blocks. The conducting parts are made of copper and corrosion-resistant metals compatible with copper.

Use

A terminal block must first be mounted in a safe, stable location away from moisture. To use it, strip

about ½ inch of insulation from the two wires you want to connect. You then insert the bare wires into the block's metal connectors and screw them down until they're securely fastened.

Special Functions

While most terminal blocks simply create an electrical connection, some have built-in fuse holders, indicator lamps or other features that add functionality for more sophisticated applications.

Variety

You can find dozens of types of terminal blocks, some generic, some specialized. Designers have developed terminal blocks for household, industrial, electronic and many other uses.

Labeling

You can use a terminal block to organize wires having different functions. Many terminal blocks have a labeling scheme that lets you identify how the wires are organized.

11.Advantage:

1)our factory located in Ningbo which is one of the largest port in China.

2)most of our engineers and workers is dealing with the terminal blocks more 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products assembling by automatic machine,which will save a lot of cost and time.

12.Promise to customers:

1)We can delivery the samples for your test free of charge

2)Our products are all guaranteed,you will have no worry to use.

3)We will delivery the order strictly as the order confirmed!

13.Production application

• Noted:

  Dear friend,thank you very much for you pay attention to Terminal blocks connector,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.




 Thank you very much for your attention to Terminal blocks connector
