Barrier Terminal Block connector 7.62mm 300V MX25C manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Barrier Terminal Block connector 7.62mm 300V

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX25C

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Pitch: 7.62mm

Terminal: Brass,Tin plated

Rated Voltage: 300V

Insulation Resistance: 500MΩ/DC500V

Temperature: -40℃~+105℃

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Part number: MX25C

Screw: M3,steel,Ni plated

Housing: PA66,UL94V-0

Rated Current: 20A

Withstanding Voltage: AC2000V/MIN

Color:Black
Pitch:7.62mm
Rated voltage:300V
Rated current:20A
Wire Range:22-14AWG
Place of origin:CiXi city,ZheJiang province

Barrier Terminal Block connector 7.62mm 300V/20A,the pitch is 7.62mm,the color is black,we also can provide this item with cover MX25CM

1.Picture of Barrier Terminal Block connector 7.62mm 300V

2.Similar products with Power terminal blocks 7.62 mm pin spacing

3.Datasheet and Drawing of Barrier Terminal Block connector 7.62mm 300V

4.Details of Barrier Terminal Block connector 7.62mm 300V

Pitch:7.62mm

Material

Screw:M3,steel,Ni plated

Terminal:Brass,Tin plated

Housing:PA66,UL94V-0

Electrical

Rated Voltage:300V

Rated Corrent:20A

Contact Resistance:20mΩ

Insulation Resistance:5000MΩ/DC500V

Withstanding Voltage:AC2000V/1Min

Mechanical

Temperature Range:-40℃~+105℃

Wire Range:22-14AWG

Torque:0.5N.m4.4Lb.in

Part number	MX25C-7.62
Pitch	7.62mm
Screw	M3,steel,Ni plated
Terminal	Brass,Tin plated
Housing	PA66,UL94V-0
Rated voltage/current	300V/20A
package	we packed in the standard cartons:282842cm,or 63.528.840.5cmor as your requirement.
Payment	100% TT before shippment

5.Package of 7.62mm 300V American Japanese Terminal Blocks

1)we always packed in three steps:inner plastic bag,inner box,export carto

2)our standard export Carton is:28*28*42cm,or 63.5*28.8*40.5cm

3)we can also packed the producrs as your special requirement

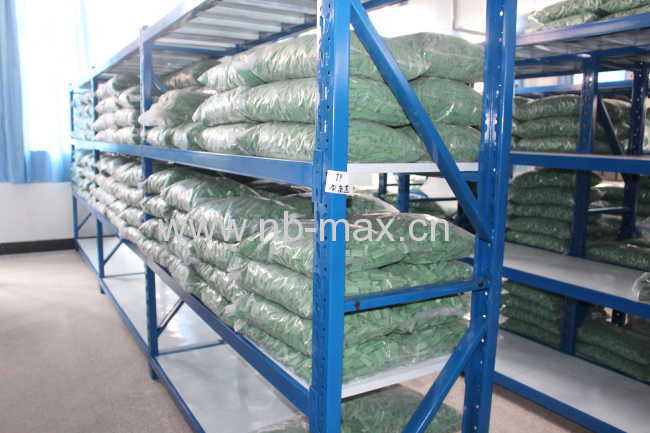

6.Stock

7.Workshop

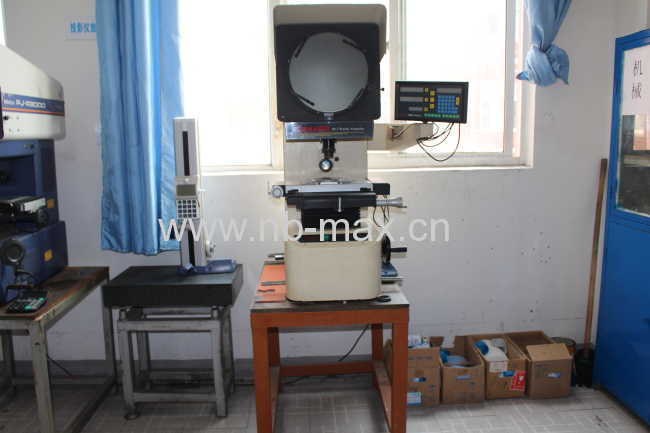

8.Equipments

9.Product application of Power Barrier terminal blocks

10.Advantage:

1)Our factory located in Ningbo which is one of the largest ports in China.

2)Most of our engineers and workers is dealing with the terminal blocks more 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products assembling by automatic machine,which will save a lot of cost and time.

5)All of our staff study advanced science and technology every month.

11.Promise to customers:

1)We can delivery the samples for your test free of charge

2)Our products are all guaranteed,you will have no worry to use.

3)We will delivery the order strictly as the order confirmed!
