Connector DIN41612 three rows 9001-12961C00A manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Product Detail

Model No.: 9001-12961C00A

Production Capacity: 500000pins/day

Delivery Date: as the order quantity

Type: C type

Rows: Three

Pitch: 2.54mm

HS code: 8536699099

Means of Transport: Ocean,Land,Air

Packing: Tray

Brand Name: MATX

Gender: Female

Position: 96

Place of Origin: NingBo China

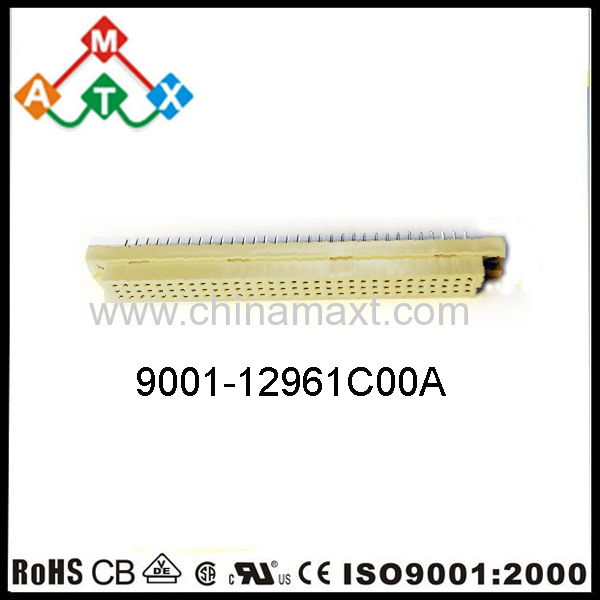

It is C type vertical female
The position is 96 pins
The color is grey
The pitch is 2.54mm*2.54mm
We pack it with tray,4pcs*9rows

Board to Board type Connector DIN41612 three rows,it is a female type,3*32 pins

Details of Connector DIN41612 three rows

Model Number	9001-12961C00A
Material
Housing	PBT+30%PC UL94V-0
Contacts	Phosphor Bronze
Electrical
Current Rating	2A
Dielectric Withstanding Voltage	AC 1000V(r.m.s)/60s
Insulation Resistance	1000MΩ Min
Contact Resistance	20mΩ Max
Operating Temperature	-55°C~+125°C
Packing
Tray	4*9

Datasheet of Connector DIN41612 three rows

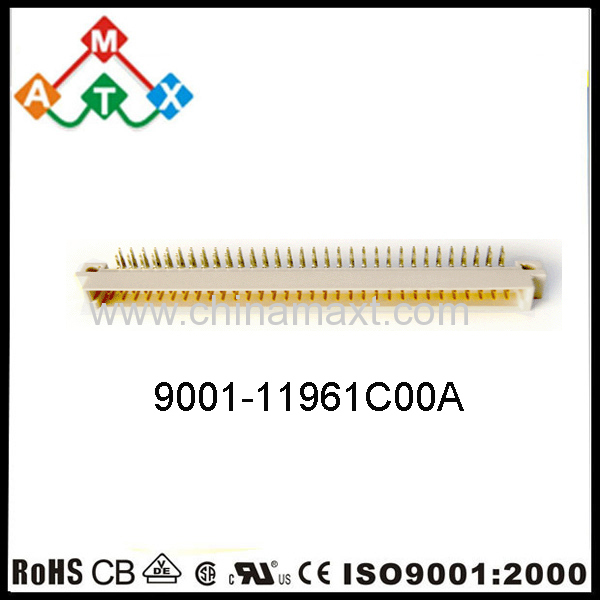

male part of DIN41612 C type 96Pins

Noted
