9.50mm screw cage Barrier Terminal Blocks 25A HB950 manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Product Detail

Model No.: HB950

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Pitch: 9.50mm

Terminal: Brass,Tin plated

Rated Voltage: 300V

Insulation Resistance: 500MΩ/DC500V

Temperature: -40℃~+105℃

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Part number: HB950

Screw: 25A

Housing: PA66,UL94V-0

Rated Current: 20A

Withstanding Voltage: AC2000V/MIN

Color:Black
Pitch:9.50mm
Housing:PA66 UL94V-0
Rated voltage:300V
Rated current:25A
Wire Range:22-14AWG
Place of origin:ZheJiang,China(mainland)

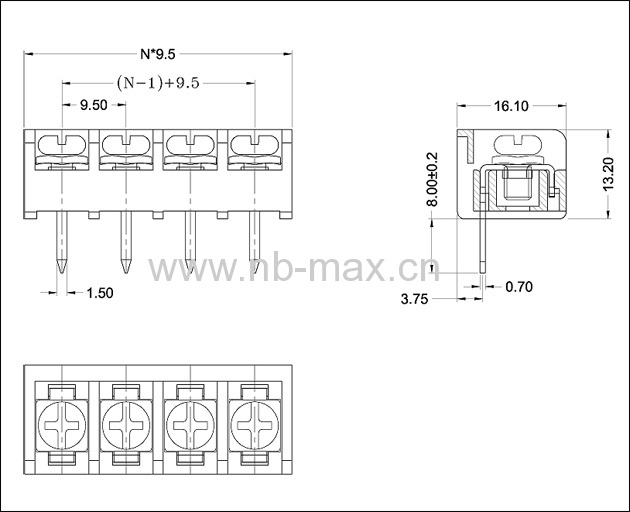

9.50mm screw cage Barrier Terminal Blocks 25A,the pitch is 9.50mm,we have cover with it and without cover.

Description of Screw cage barrier terminal blocks

Pitch:9.5mm

Material

Screw:M3,steel,Ni plated

Terminal:Brass,Tin plated

Housing:PA66,UL94V-0

Electrical

Rated Voltage:300V

Rated Corrent:25A

Contact Resistance:20mΩ

Insulation Resistance:5000MΩ/DC500V

Withstanding Voltage:AC2000V/1Min

Mechanical

Temperature Range:-40℃~+105℃

Wire Range:22-14AWG

Torque:0.5N.m4.4Lb.in

Part number	HB950-9.50
Pitch	9.5mm
Screw	M3,steel,Ni plated
Terminal	Brass,Tin plated
Housing	PA66,UL94V-0
Rated voltage/current	300V/25A
package	we packed in the standard cartons:282842cm,or 63.528.840.5cmor as your requirement.
Payment	100% TT before shippment

Packing of American Japanese Terminal Blocks connector
1)we always packed in three steps:inner plastic bag,inner box,export carto
2)our standard export Carton is:28*28*42cm,or 63.5*28.8*40.5cm
3)we can also packed the producrs as your special requirement

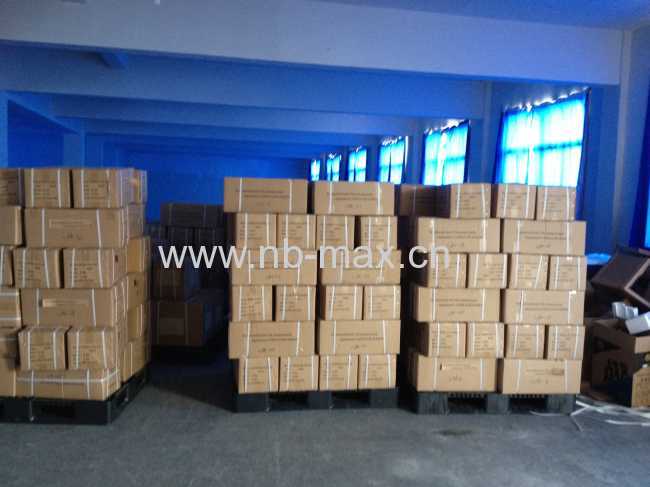

Warehouse

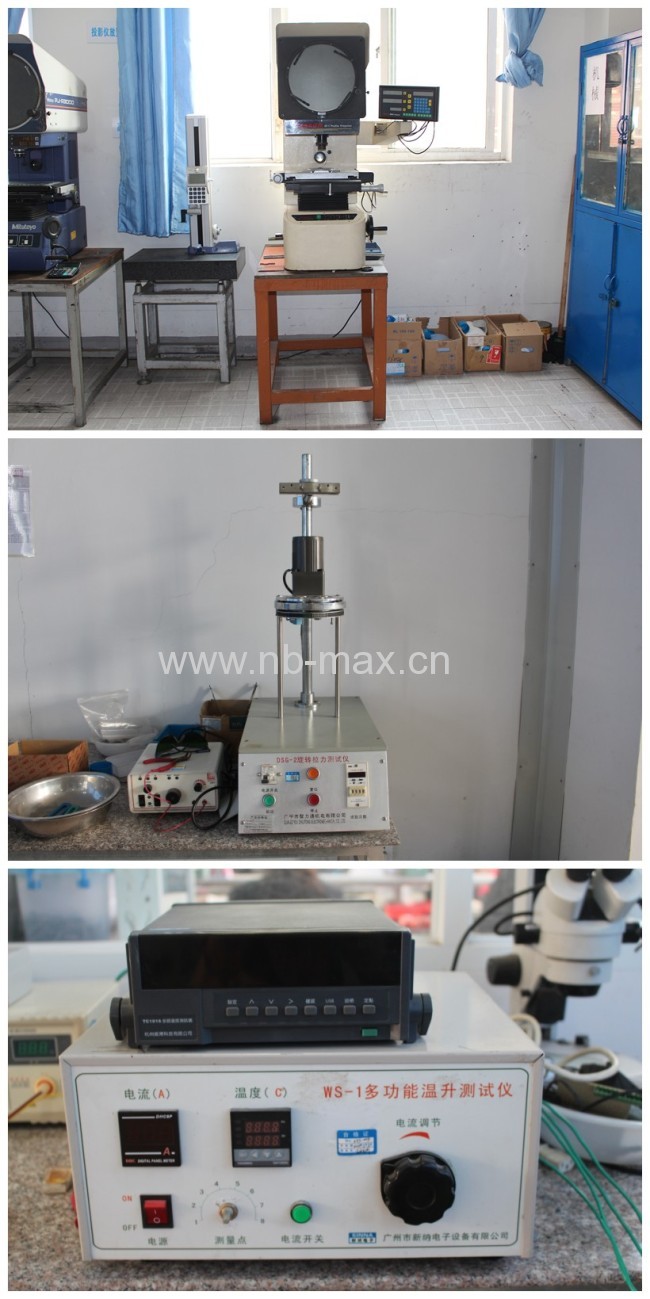

Equipments
Our port
Export to following countries:
Advantage:
1)Our factory located in Ningbo which is one of the largest ports in China.
2)Most of our engineers and workers is dealing with the terminal blocks more 10 years
3)Many of our items have large stock for your fast shippment
4)Many of our products assembling by automatic machine,which will save a lot of cost and time.
5)All of our staff study advanced science and technology every month.
Promise to customers:
1)We can delivery the samples for your test free of charge
2)Our products are all guaranteed,you will have no worry to use.
3)We will delivery the order strictly as the order confirmed!
Noted
Dear friend,thank you very much for you pay attention to our Barrier terminal blocks ,please contact with Angelo at any time,I will give you a quick reply and try my best to do all the thing well.
