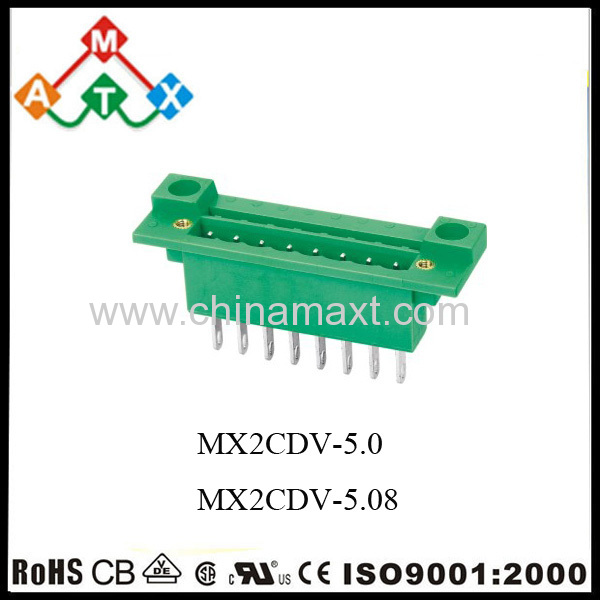

Pluggable Terminal Blocks 5.08 mm pitch vertical pin header MX2CDV manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Product Detail

Model No.: MX2CDV

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Pitch: 5.08mm

Housing: PA66,UL94V-0

Rated Corrent: 15A

Temperature Range: -40℃~+105℃

Orientation: Vertical

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Part number: MX2CDV

Pin header: Brass,Tin plated

Rated Voltage: 300V

Color: Green

Place of Origin: ZheJiang,China(mainland)

1.Pitch:5.08mm
2.Pin header:Brass,Tin plated
3.Housing:PA66,UL94V-0
4.Rated Voltage/Current:300V 15A
5.Temperature Range:-40℃~+105℃
6.Vertical

Pluggable Terminal Blocks 5.08 mm pitch vertical pin header,for this type,it is worked together with MX2EDGK.The pitch is 5.08mm.

Description of Plug in Terminal Blocks vertical pin header 5.08mm pitch

Pitch:5.08mm

Material

Pin header:Brass,Tin plated

Housing:PA66, UL94V-0

Electrical

Rated voltage:300V

Rated current:15A

Contact resistance:20mΩ

Insulation resistance:5000MΩ/1000V

Withstanding Voltage:AC1500V/1Min

Mechanical

Temp.Range:-40℃~+105℃

MAX Soldering:+250C for 5 Sec.

Part number	MX2CDV-5.08
Pitch	5.08mm
Material	PA66, UL94V-0
Pin header	Brass,Tin plated
Rated voltage	300V
Rated current	15A
Temp. Range	-40℃~+105℃
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

Related products of Plug-in Terminal Blocks connectors

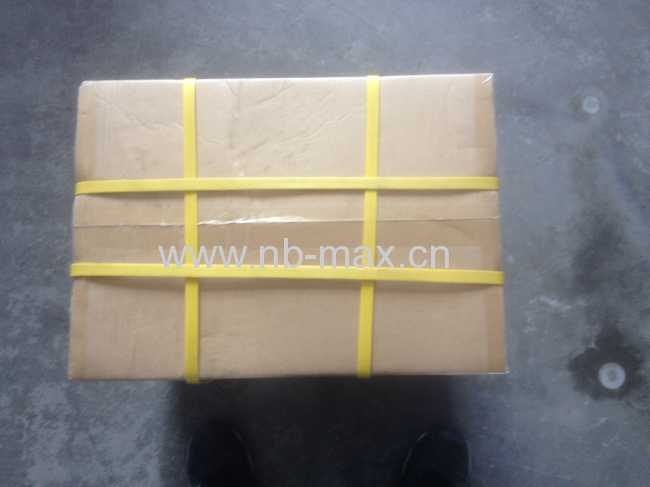

Packing of PCB Plug-in Terminal Blocks connectors 5.08 pitch
1)we always packed in three steps:inner plastic bag,inner box,export carton
2)our standard export Carton is:28*28*42cm
3)we can also packed the products as your special requirement

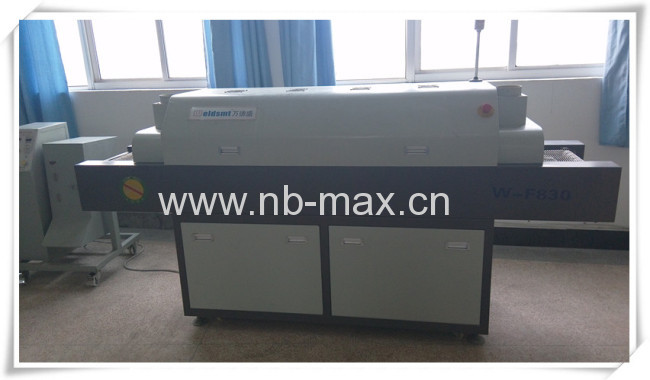

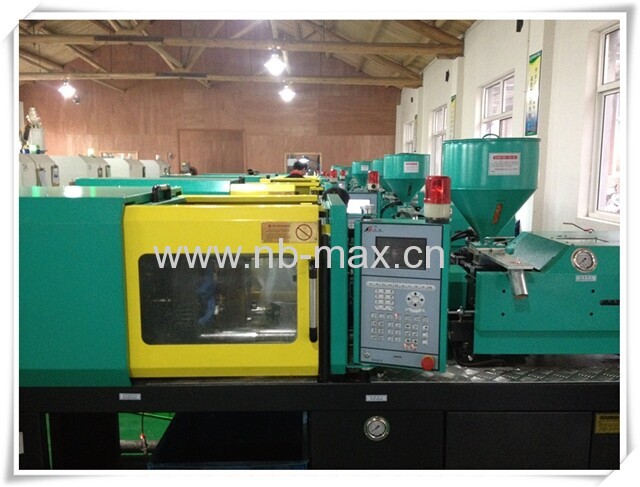

Equipments

Export to the following countries:
Advantage:
1)Our factory located in Ningbo which is one of the largest port in China.
2)Most of our engineers and workers is dealing with the terminal blocks more 10 years
3)Many of our items have large stock for your fast shippment
4)Many of our products assembling by automatic machine,which will save a lot of cost and time.
5)All of our staff study advanced science and technology every month.
Promise to customers:
1)We can delivery the samples for your test free of charge
2)Our products are all guaranteed,you will have no worry to use.
3)We will delivery the order strictly as the order confirmed!
Thank you very much for your pay attention to our 5.08 Pluggable Terminal Blocks
Noted:
Dear friend,thank you very much for you pay attention to this type,please feel free to contact Angelo at any time,I will give you a quick reply and try my best to do all the things well.
