Spring clamp terminal blocks PCB Screwless connectors 7.50 mm pin spacing,for this type,the pitch we have 3.81mm,5.0mm,7.50mm.

• Picture of Spring clamp terminal blocks PCB Screwless connectors 7.50 mm pin spacing

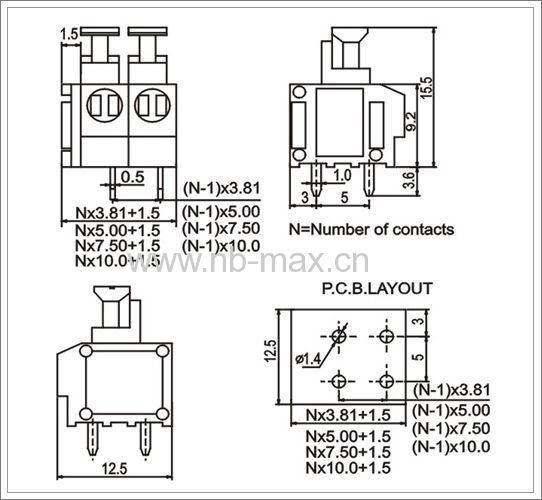

• Datasheet of Spring clamp terminal blocks PCB Screwless connectors 7.50 mm pin spacing

• Description of PCB screwless terminal blocks spring clamp




       Pitch:7.50mm

       Material

       Pin header:Brass,Tin plated

       Housing:PA66,UL94V-0

       Electrical

       Rated Voltage:300V

       Rated Corrent:5A

       Contact Resistance:20mΩ

       Insulation Resistance:5000MΩ/1000V

       Withstanding Voltage:AC1500V/1Min

       Wire Range:20-18AWG 1.5mm²

       Mechanical

       Temperature Range:-40℃~+105℃

       Max Soldering:+250℃,5 Seconds

       Strip Length:8-9mm




Part number	MX124B-7.50
Pitch	7.50mm
Material	PA66, UL94V-0
Rated voltage/current	300V/5A
Pin header	Brass,Tin plated
Wire range	20-18AWG 1.5mm²
Strip length	8-9mm
Temp. Range	-40℃~+105℃
package	we packed in the standard cartons:28*28*42cm,or as your requirement.
Payment	100% TT before shippment

• Packing of PCB screwless Terminal blocks Spring connectors 7.50



   1)we packed in three steps:inner plastic bag,inner box,export carton

   2)our standard export Carton is:28*28*42cm

   3)we can also packed the products as your special requirement



• Equipments

• Export to the following countries:






• Variety color of Replace WAGO screwless terminal blocks connectors spring clamp

  green	(similar to RAL 6032)
  black	(similar to RAL 9005)
  light gray	(similar to RAL 7035)
  dark gray	(similar to RAL 7040)
  orange	(similar to RAL 2003)
  blue	(similar to RAL 5012)
  red	(similar to RAL 3017)
  other colours	upon request

• What is a screwless terminal block

  The product family comprises terminal blocks that are based on a spring clamp connection. By spring clamp connection, we mean an electrical connection which is established by clamping an individual stripped conductor by means of a spring. It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm2 and permits





• Advantage:

  1)Our factory located in Ningbo which is one of the largest ports in China.

  2)Most of our engineers and workers is dealing with the terminal blocks more 10 years

  3)Many of our items have large stock for your fast shippment

  4)Many of our products assembling by automatic machine,which will save a lot of cost and time.

  5)All of our staff study advanced science and technology every month.




• Promise to customers:

  1)We can delivery the samples for your test free of charge

  2)Our products are all guaranteed,you will have no worry to use.

  3)We will delivery the order strictly as the order confirmed!
