3.50 Pluggable Terminal Blocks 3.50 mm Spacing PCB connectors

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX15EDGK

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Model No: MX15EDGK

Pitch: 3.50mm

Housing: PA66,UL94V-0

Rated Voltage: 300V

Wire Range: 28-16AWG 0.5-1.5mm²

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Brand Name: MATX

Color: Green

Screw: M2,steel,zinc plated

Cantact: Phosphor bronze

Rated Corrent: 8A

Strip length: 5-6mm

1.Model No: MX15EDGK
2.Pitch: 3.50mm
3.Housing:PA66 UL94-0
4.Rated Voltage and Corrent: 300V 8A
5.Wire Range:28-16AWG 0.5-1.5mm²
6.Color:Green

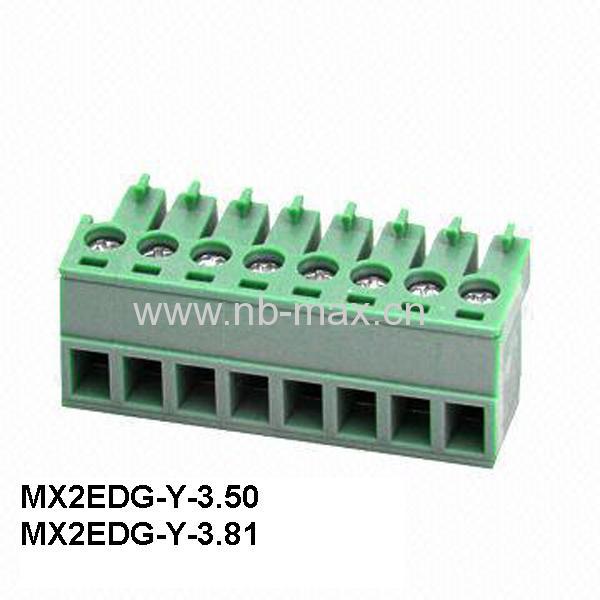

3.50 Pluggable Terminal Blocks with UL and TUV approval 3.50 mm Spacing PCB connectors,we have pitch 3.50mm,3.81mm,5.0mm,5.08mm,7.50mm,7.62mm,it is a female part,and it is used together with male part,MX2EDGCV-3.50,MX2EDGCR-3.50

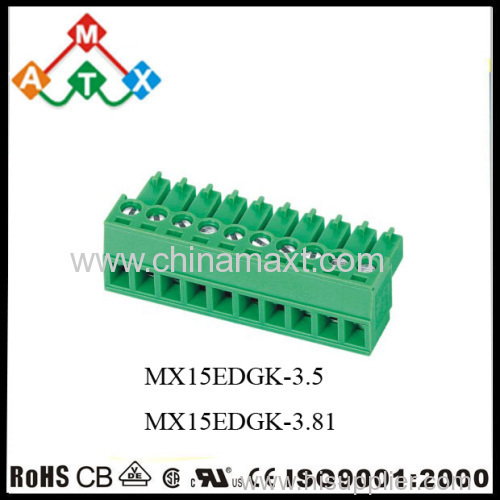

Picture of 3.50 Pluggable Terminal Blocks 3.50 mm Spacing PCB connectors

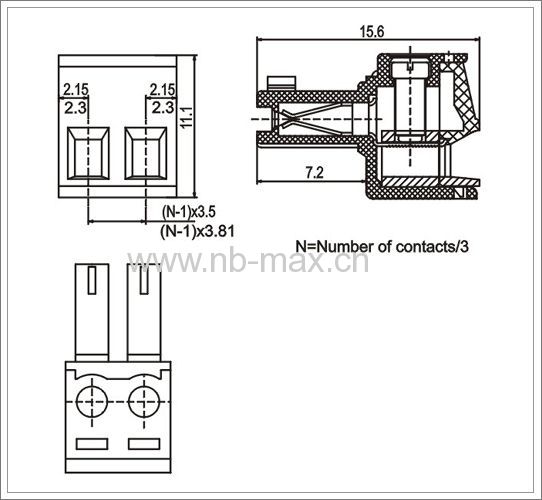

DIMENSIONAL DRAWINGS of 3.50 Pluggable Terminal Blocks 3.50 mm Spacing PCB connectors

Description of 3.50 Pluggable Terminal Blocks 3.50 mm Spacing PCB connectors

Pitch:3.50mm

Material

Screw;M2.0 Steel Zinc Plated

Contact:Phosphor Bronze

Housing:PA66,UL94V-0

Electrical

Rated Voltage:300V

Rated Corrent:8A

Contact Resistance:20mΩ

Insulation Resistance:5000MΩ/1000V

Withstanding Voltage:AC1500V/1Min

Wire Range:28-16AWG 0.5-1.5mm²

Mechanical

Temperature Range:-40℃~+105℃

Max Soldering:+250℃,5 Seconds

Strip Length:5-6mm

Part number	MX15EDGK-3.50
Pitch	3.50mm
Material	PA66, UL94V-0
Rated voltage/current	300V/8A
Contact	Phosphor bronze
Wire range	28-16AWG 0.5-1.5mm²
Strip length	5-6mm.
Temp. Range	-40℃~+105℃
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment
