3.81mm 3.50mm PCB Screw Terminal Blocks connector 150V 10A

Price:	0.01 USD
Payment Terms:	T/T,L/C,WU;PAPAL
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX124V

Production Capacity: 500000pins

Delivery Date: Standard delivery date is 1...

Pitch: 3.81mm

Contact: Phosphor bronze,Ni Plated

Rated Voltage: 150V

Color: Green

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Part number: MX124V

Plastic: PA66,UL94V-0

Pin header: Brass,Tin Plated

Rated Current: 10A

Place of Origin: ZheJiang,China(mainland)

1.Pitch:3.81mm
2.Pin header:Brass,Ni Plated
3.Housing:PA66, UL94V-0
4.Contact:Phosphor bronze,Ni Plated
5.Rated Voltage/Current:150V/10A

3.81mm/3.50mm PCB Screw Terminal Blocks connector 150V 10A,the pin is straight,the pitch is 3.50mm,we also have 3.81mm.

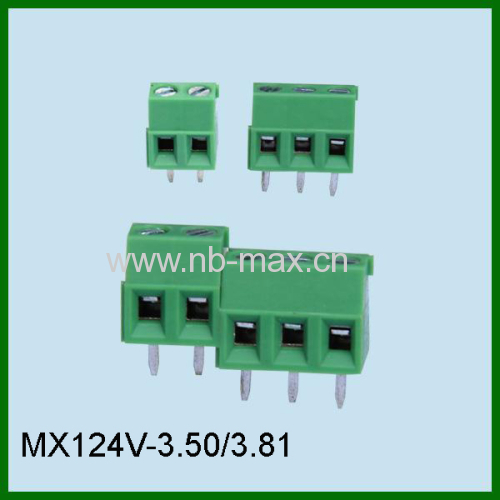

1.Picture of 3.81mm/3.50mm PCB Screw Terminal Blocks connector 150V 10A

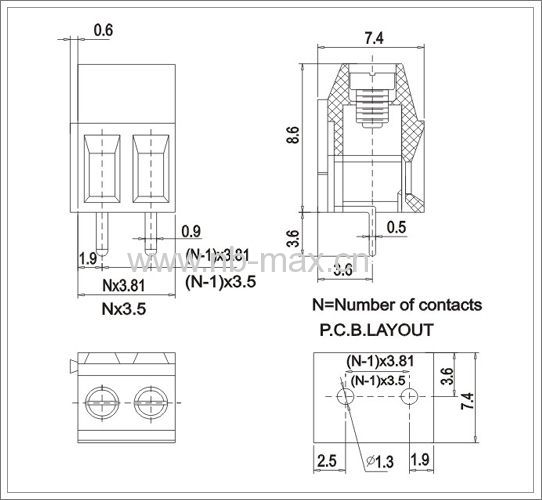

2.Datasheet and Drawing of 3.81mm 3.50mm PCB Screw Terminal Blocks connector 150V 10A

3.Details of 3.81mm 3.50mm PCB Screw Terminal Blocks connector 150V 10A

Pitch:3.81mm

Material

Screws:M2 steel Zinc plated

Contact:Phosphor bronze

Housing:PA66, UL94V-0

Electrical

Rated voltage:150V

Rated current:10A

Contact resistance:20mΩ

Insulation resistance:5000MΩ/1000V

Withstanding Voltage:AC2000V/1Min

Wire range:26-16AWG 1mm²

Mechanical

Temp.Range:-40C~+105C

MAX Soldering:+250C for 5 Sec.

Torque:0.2Nm (1.8lb.In)

Strip length:5-6mm.

Part number	MX124V-3.81
Pitch	3.81mm
Material	PA66, UL94V-0
Rated voltage/current	150V/10A
Contact	Phosphor bronze
Wire range	26-16AWG 1mm²
Strip length	5-6mm.
Temp. Range	-40C~+105C
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

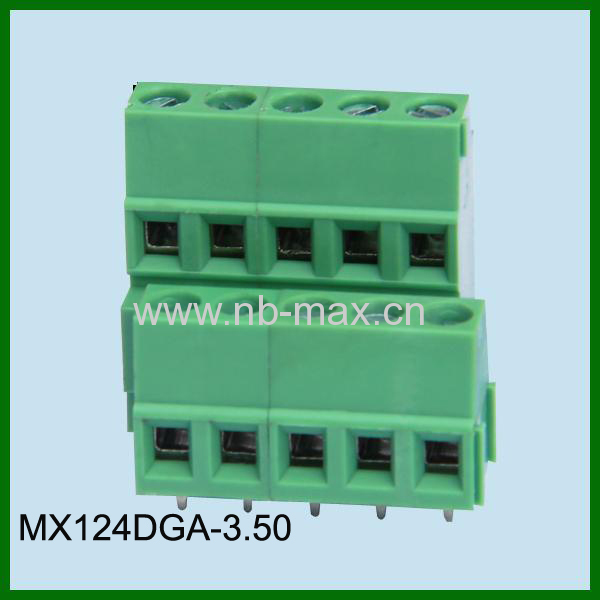

4.Similar products with PCB SCREW EURO Terminal Block connector 3.81mm 3.50mm

5.Packing of PCB SCREW EURO Terminal Block connector 3.81mm 3.50mm

1)we always packed in three steps:inner plastic bag,inner box,export carton

2)our standard export Carton is:28*28*42cm

3)we can also packed the products as your special requirement

6.Stock

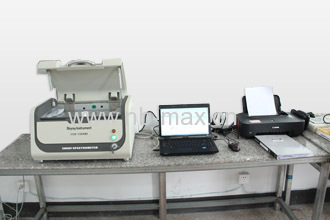

7.Equipments

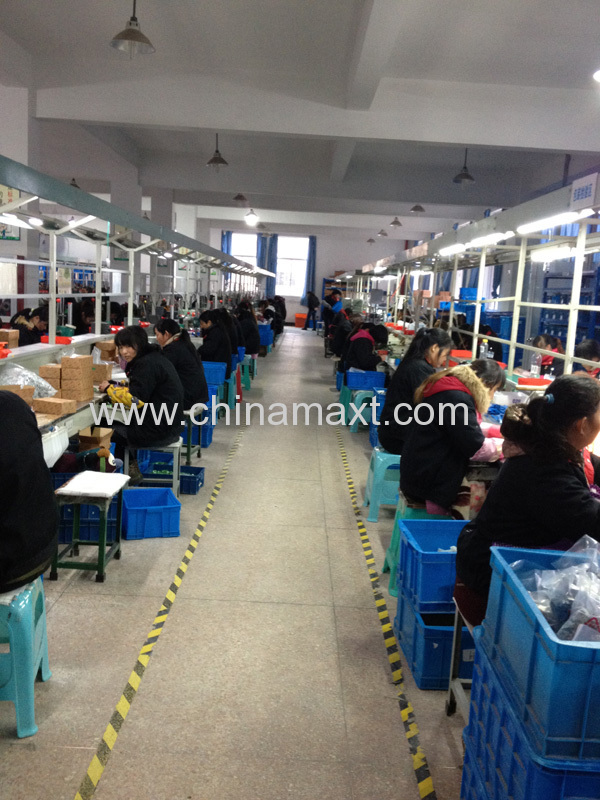

8.Workshop

9.Advantages:

1)Our factory located in Ningbo,one of the largest ports in China.which is very convinent for your shippment.

2)Most of our engineers and workers are dealing with the terminal blocks more than 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products are assembling by automatic machines,so our quality is high and the price is pretty competitive

10.Noted

Dear friend,thank you very much for you pay attention to our terminal blocks,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
Thank you very much for your attention to terminal blocks connectors
