2.54mm double row Pin header 2*40 MX1013 manufacturer from China NINGBO MAX COMMUNICATIONS EQUIPMENT CO.,LTD

Price:	0.01 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Paypal
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX1013

Production Capacity: 500000pins/day

Delivery Date: according to the order quan...

Insulator: PBT UL94V-0

Terminal plating: Gold plated/Tin over nickel

Contact Resistance: initial max 20mΩ

Storage Temperature: -20℃~+70℃

Delivery time: usually we can delivery in ...

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Pitch: 2.54mm

Terminal: Copper Alloy

Rated current: 2A

Operating Temperature: -40℃~+105℃

Place of origin: Zhejiang,China(mainland)

Item:Pin header
Brand name:MATX
Part number:MX1013
Pitch:2.54mm
Packing:plastic bag,little box,carton.
Delivery time:according the quantity.

2.54mm pitch double row Pin header 2*40,it is a pin header,the pitch is 2.54mm,it is 2*40,we also can do as your requirements.

1.Picture of 2.54mm double row Pin header 2*40

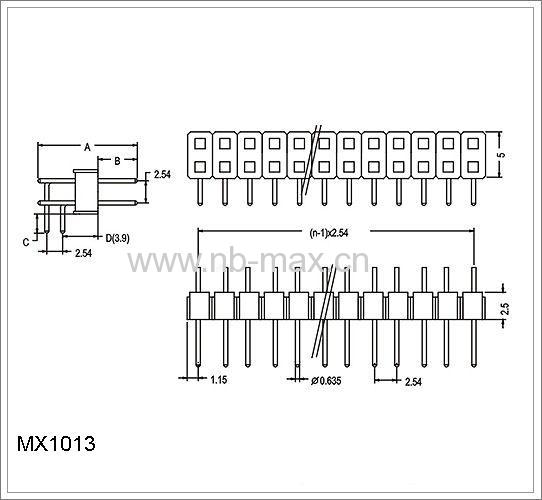

2.Datasheet of 2.54mm double row Pin header 2*40

3.Details of 2.54mm double row Pin header 2*40

Material

Insulator:PBT UL94V-0

Terminal:Copper alloy

Terminal plating:Gold plated/Tin nickel

Electrical:

Rated Current:2A

Contact Resistance:Initial max 20mΩ

Withstanding Voltage:500VAC/min

Insulation Resistance:1000mΩ

Operating Temperature:-40℃~+105℃

Storage Temperature:-20℃~+70℃

Item	Pin header
Part number	MX1013-2.54
Pitch	2.54mm
Material	PBT, UL94V-0, Copper alloy ,gold plated/Tin over ni
Rated current	2A
Contact Resistance	Initial max 20mΩ
Operating Temperature	-40℃~+105℃
Storage Temperature℃	-20℃~+70
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

4.Packing of Double row pin header 2.54mm pitch

1)we always packed in three steps:inner plastic bag,inner box,export carton

2)our standard export Carton is:28*28*42cm

3)we can also packed the products as your special requirement

5.Similar products with Double row 2.54 mm space pin header

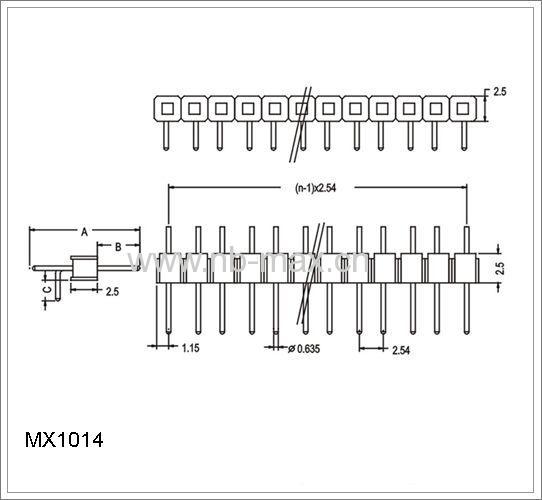

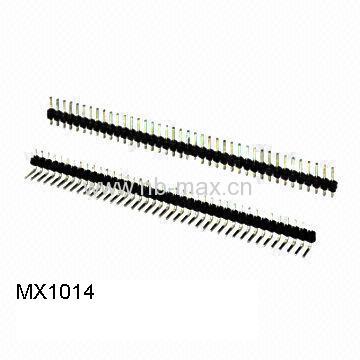

Pin header MX1014

6.Stock

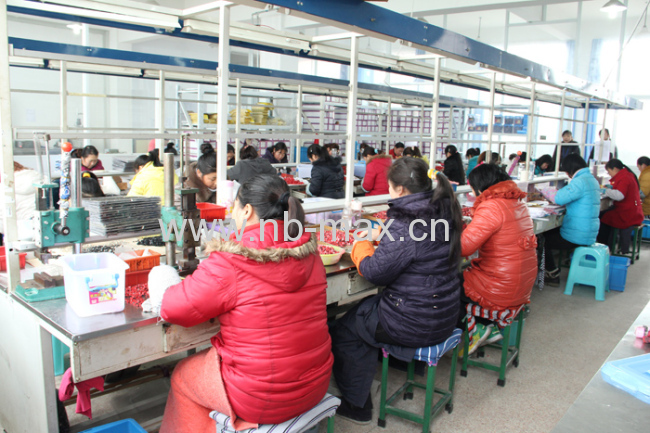

7.Workshop

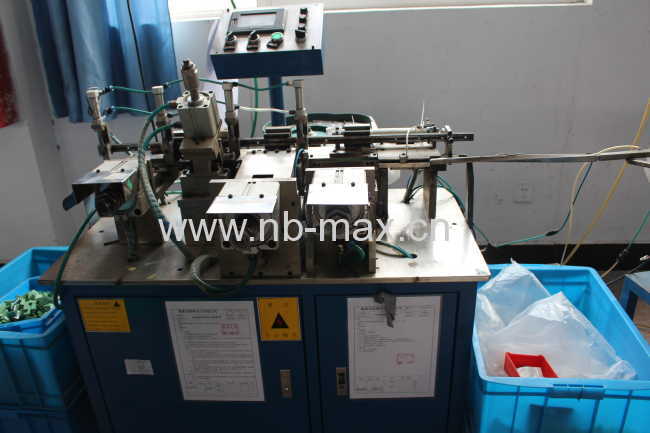

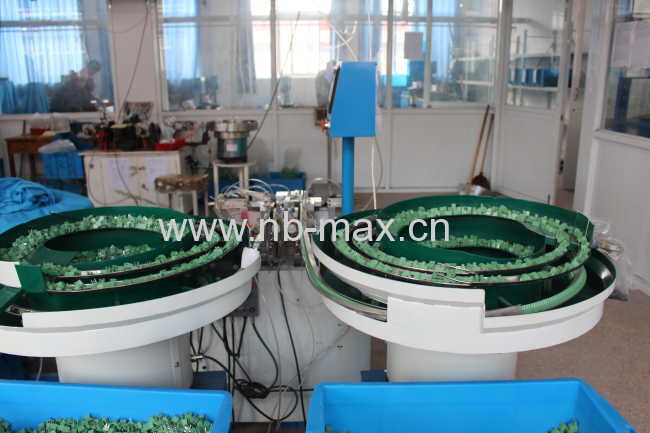

8.Equipments

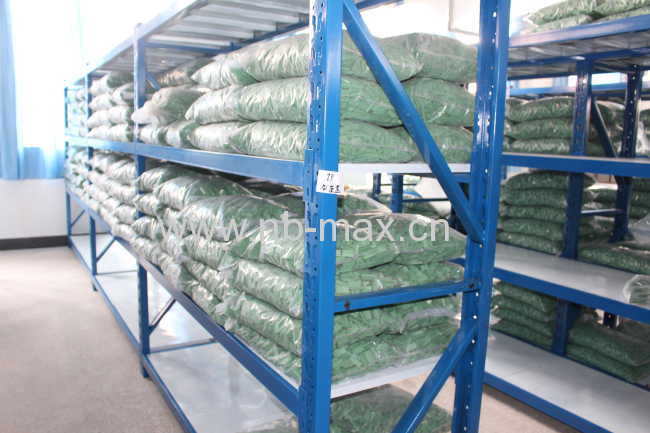

9.Warehouse

10.Advantage:

1)Our factory located in Ningbo which is one of the largest ports in China.

2)Most of our engineers and workers is dealing with the terminal blocks more 10 years

3)Many of our items have large stock for your fast shippment

4)Many of our products assembling by automatic machine,which will save a lot of cost and time.

5)All of our staff study advanced science and technology every month.

11.Promise to customers:

1)We can delivery the samples for your test free of charge

2)Our products are all guaranteed,you will have no worry to use.

3)We will delivery the order strictly as the order confirmed!

12.Our port

Noted:
Dear friend,thank you very much for you pay attention to Terminal blocks connector,please contact with Angelo Tse at any time,I will give you a quick reply and try my best to do all the thing well.
