45 degree 3.50mm 3.81mm PCB Screw terminal blocks 300V 10A

Price:	0.01 USD
Payment Terms:	T/T,L/C,WU;PAPAL
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MX102

Production Capacity: 500000pins

Delivery Date: Standard delivery date is 1...

Part number: MX102V

Pitch: 3.5mm

Contact: Phosphor bronze,Ni Plated

Rated Voltage: 300V

Place of Origin: ZheJiang,China(mainland)

Means of Transport: Ocean,Land,Air

Packing: inner plastic bag,inner box...

Brand Name: MATX

Brand: MATX

Plastic: PA66,UL94V-0

Pin header: Brass,Tin Plated

Rated Current: 10A

1.Part number: MX102
2.Pitch:3.5mm
3.Housing:PA66, UL94V-0
4.Pin header:Brass,Tin Plated
5.Rated Voltage/Current:300V/10A
6.Color:Green

45 degree 3.50mm/3.81mm PCB Screw terminal blocks 300V 10A,MX102V product is some different form others because it is 45 degree products.the poles of this item are from 2Poses-24Poses,you can choose as your need!

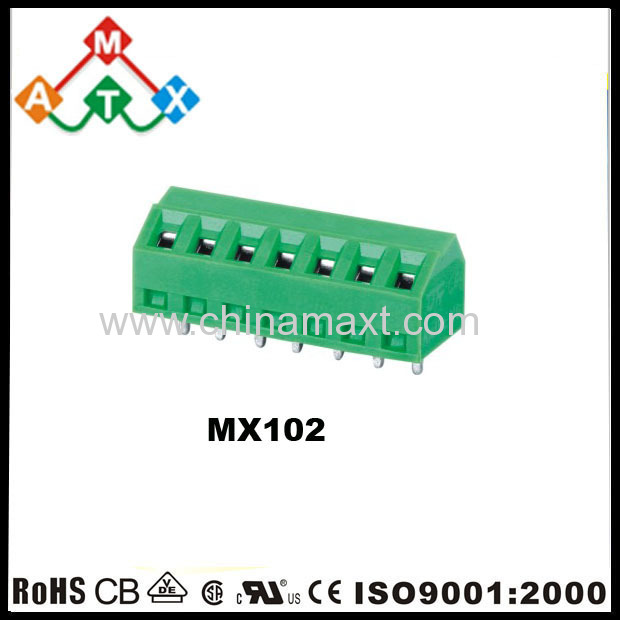

1.Picture of 45 degree 3.50mm 3.81mm PCB Screw terminal blocks 300V 10A

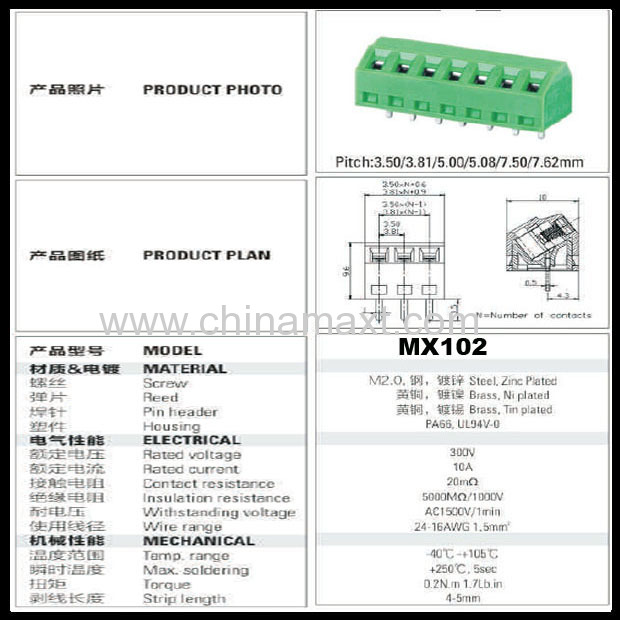

2.Drawing of 45 degree 3.50mm 3.81mm PCB Screw terminal blocks 300V 10A

3.Datails of PCB Screw terminal blocks 3.50mm pin spacing

Pitch:3.5mm

Material

Screws:M2 steel Zinc plated

Contact:Phosphor bronze

Housing:PA66, UL94V-0

Electrical

Rated voltage:300V

Rated current:10A

Contact resistance:20mΩ

Insulation resistance:5000MΩ/1000V

Withstanding Voltage:AC2000V/1Min

Wire range:24-12AWG 1mm²

Mechanical

Temp.Range:-40C~+105C

MAX Soldering:+250C for 5 Sec.

Torque:0.2Nm (1.8lb.In)

Strip length:4.5-5mm.

Part number	MX102-3.5
Pitch	3.5mm
Material	PA66, UL94V-0
Rated voltage/current	300V/10A
Contact	Phosphor bronze
Wire range	24-12AWG 1mm²
Strip length	4-5mm.
Temp. Range	-40C~+105C
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment
